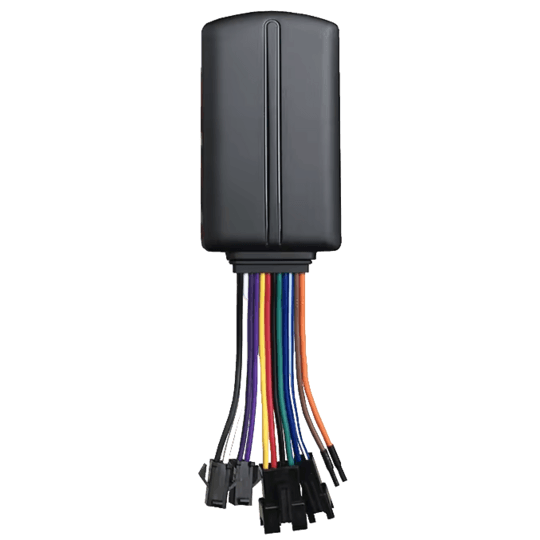

Benway BW09
The Benway BW09 GPS tracker offers dual GPS+LBS tracking for vehicles. It includes a G-Sensor, internal battery, ACC/AC recognition, motor cut-off, voice checking, SOS signal, and fuel recognition. It operates on 9-50V power supply.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47755 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 155 g (5.47 oz.) |
| Size | 68x38x11 mm (2.68x1.5x0.43 in) |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | GSM 850/900/1800/1900 |
| Cellular network generation | 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| GPS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
Interfaces
| Discrete inputs | 2 |
| Number of outputs | 1 |
| RS485 interface | Yes |
