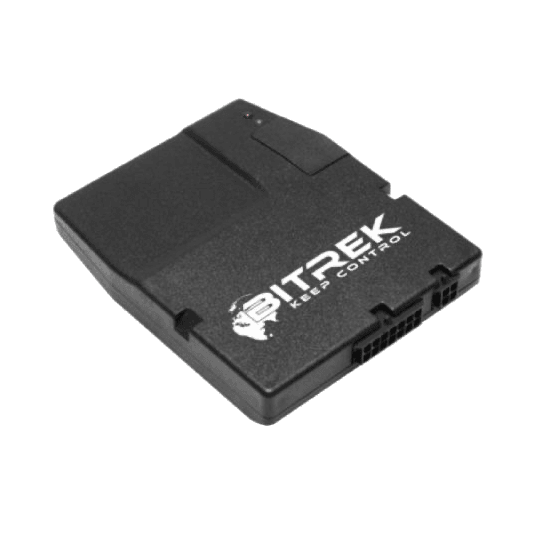

BI 530P TREK
Bitrek BI 530P is a 2G fleet GPS tracker. Device has various interfaces such as RS-232/485 and 1-Wire for measurement and discrete sensors that allows users to connect different peripheral devices such as Can Log, fuel sensors, driver ID reader, and others. With the help of digital output there is a capability to switch the engine on/off. BI 530P can store up to 50000 points in the internal memory as a buffer for cases when the GSM signal is weak.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47776 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Waterproof class | IP54 |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Roaming status | Yes |
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | GSM 850/900/1800/1900 |
| Cellular network generation | 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over SMS | Yes |
| GPS | Yes |
| GLONASS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Hardware key | Yes |
Interfaces
| Discrete inputs | 3 |
| Number of outputs | 2 |
| Analog sensor | Yes |
| Impulse counter | Yes |
| Frequency sensor | Yes |
| RS485 interface | Yes |
| 1-Wire interface | Yes |
Input Fields
State Fields
Events monitoring
