AMGPS MOTO-1000

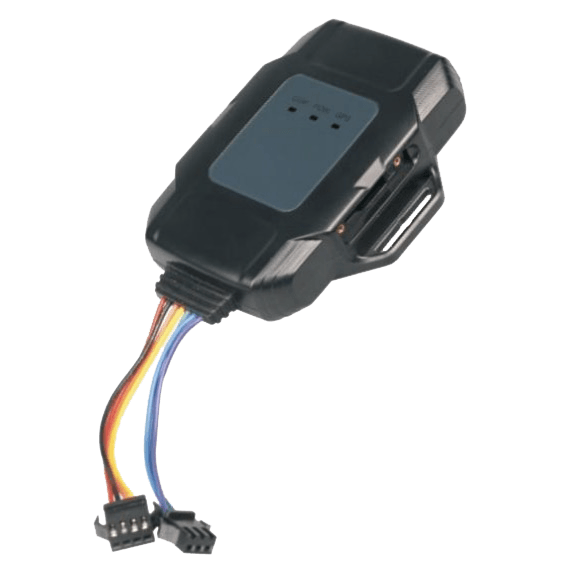

AMGPS MOTO-1000 is a compact motorcycle GPS tracker. It is a small but functional device with built-in GPS and GSM antennas and some security options like SOS alarm, Tele-cut off function for petrol and cable cut-off alarm.
Package contents
AMGPS MOTO-1000 is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.
The standard package contains:
- MOTO-1000 device
- 7 pin-cable
- Relay
- User Manual
Location and tracking
AMGPS MOTO-1000 is embedded with GPS, it doesn’t support GLONASS or alternative systems.
There are only two basic tracking modes, which do not provide too much flexibility: by time interval and by distance.
As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).
Mobile networks
AMGPS MOTO-1000 has a Quad-band GSM 2G that allows to operate it all over the world.
Local and remote management
MOTO-1000 can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.
LED Indication
AMGPS MOTO-1000 has three LED indicating:
- Power status
- GSM/GPRS mode
- GPS signal reception
Conexión del servidor
| Servidor de la UE | tracker.navixy.com (52.57.1.136) |
| Servidor de USA | tracker.us.navixy.com (13.52.37.2) |
| Puerto de servidor | 47755 |
| Auto registro | Sí |
Información general
| Finalidad | Vehículo |
| Peso | 100 g (3.53 oz.) |
Conectividad
| Nivel de señal | Sí |
| ID del operador | Sí |
Información de ubicación
| Nivel de señal GNSS | Sí |
| LBS | Sí |
| Localización forzada por GNSS preferente a GPRS | Sí |
| Localización forzada de GNSS preferente a SMS | Sí |
Características
| Control remoto de las salidas | Sí |
| Odómetro | Sí |
Interfaces
| Entradas digitales | 3 |
| Número de salidas | 1 |
