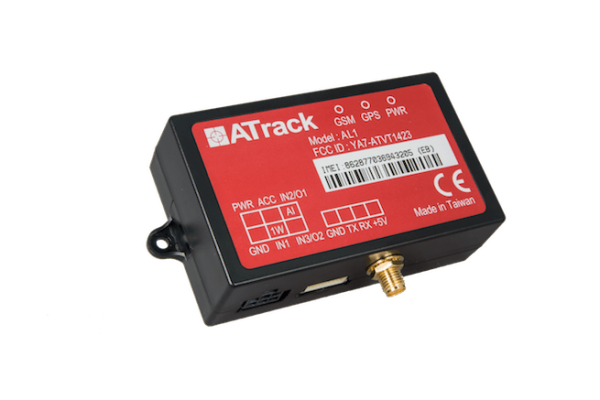

ATrack AL1

Package contents

ATrack AL1 package contains the following device/accessories:

• Device
• Power/IO Cable
• Serial Cable

Product features:

• Small and easy installation
• Data communication by SMS/USSD/TCP/UDP
• High accuracy GPS positioning
• GSM jamming detection
• Built-in 3-axis G-sensor
• FOTA firmware upgrade using FTP
• Configurable Real Time Tracking & Logging
• Intelligent event control engine
• 1-Wire® protocol supported
• 3 Configurable GPIOs
• Roaming preference settings
• Harsh driving behavior events
• Configurable power management
• 32 user defined geofences
• Support Garmin® FMI
• Support external fuel level sensor

Location and tracking

ATrack AL1 is embedded with GPS. It does not support A-GPS, or GLONASS technology.

As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

ATrack AL1 has a Quad-band GSM 2G module that allows to operate it all over the world.

Power supply

External power supply might be 8-40V, which makes possible to use ATrack AK1 with all car models.

Local and remote management

ATrack AL1 can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

ATrack AL1 model has three LEDs:

• Power LED – indicates power status
• GPS LED – indicates GPS signal
• GSM LED – indicates GSMS signal
