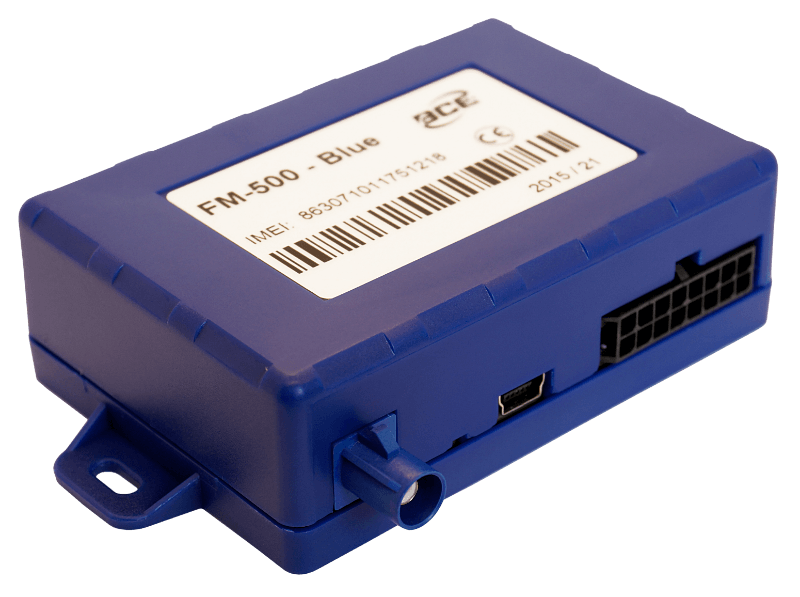

BCE FM-500 Blue

Package contents

BCE FM-500 Blue package content includes:

• BCE FM-500 Blue device
• External GPS antenna
• Wires + 1A Fuse

Also, the device can be sent with optional internal back up 700mAh battery, as claimed by manufacturer.

Location and tracking

FM-500 Blue model is embedded with GPS chip and it supports GLONASS as well. Also it supports Assisted GPS (A-GPS) technology. It uses Cell ID location (also known as LBS-tracking) as the back-up, when no satellites signals are available.

Mobile networks

With a Quad-band GSM module BCE FM-500 Blue can operate all over the world where 2G networks are supported.

 Features

BCE FM-500 Blue model features:

Interfaces

• FMS CAN (protocol J1939)
• OBDII (diagnostic protocol of light vehicles, SAE-1979 w/o adapters)
• CAN protocols of light vehicles (without adapters)

Inputs and outputs

• 4x digital inputs (frequency, impulse counter, ON/OFF modes)
• 3x analogue inputs, 11 bit, 0-36V
• 3x digital outputs

Power supply

External power supply range might be 9V – 40V, which makes possible to install device both on cars and vans.

Local and remote management

BCE FM-500 Blue can be fully controlled over GPRS, including configuration of tracking modes and outputs control. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

Also, you can configure and manage the device via the manufacturer’s software «BCE configurator».

LED Indication

BCE FM-500 Blue has one LED for GSM/GPS status.
