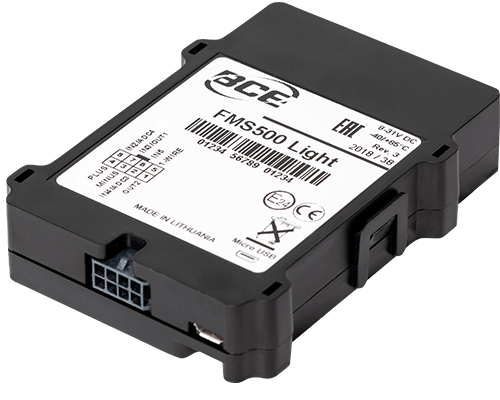

BCE FMS500 Light MQTT (IOTM)
BCE FMS500 LIGHT is a vehicle tracker with ignition monitoring, output control and jamming detection feature. BCE FMS500 LIGHT is able to help you in driving quality monitoring by using car crash detections and Eco driving. Device works in 8-31 V voltage range. Also BCE FMS500 LIGHT tracker supports LBS and A-GPS technologies, 1-Wire interface, analog inputs and protection against overvoltage.
Mostrar más
This tracker uses MQTT protocol for data transferring.
Location and tracking
- GPS/GLONASS support
- Continuous modes
- LBS support
Mobile networks
- 2G Network
Power supply
- Build-in battery 700mAh (optional)
- External power supply (8 – 31V)
Inputs and outputs
- 4 Digital inputs
- 2 Analog inputs
- 2 Digital outputs
Other features
- Eco driving
- Car crash detection
- Internal antennas
- GSM jamming detection
- 1-Wire interface
Conexión del servidor
| Servidor de la UE | tracker.navixy.com (52.57.1.136) |
| Servidor de USA | tracker.us.navixy.com (13.52.37.2) |
| Puerto de servidor | 1883 |
Información general
| Finalidad | Vehículo |
Conectividad
| Estado de roaming | Sí |
| Nivel de señal | Sí |
| ID del operador | Sí |
Información de ubicación
| Nivel de señal GNSS | Sí |
| LBS | Sí |
Características
| Control remoto de las salidas | Sí |
| Odómetro | Sí |
| Acelerómetro | Sí |
| Lectura del identificador del conductor | Sí |
Interfaces
| Entradas digitales | 8 |
| Número de salidas | 2 |
| Sensor analógico | Sí |
| Sensor de frecuencia | Sí |
