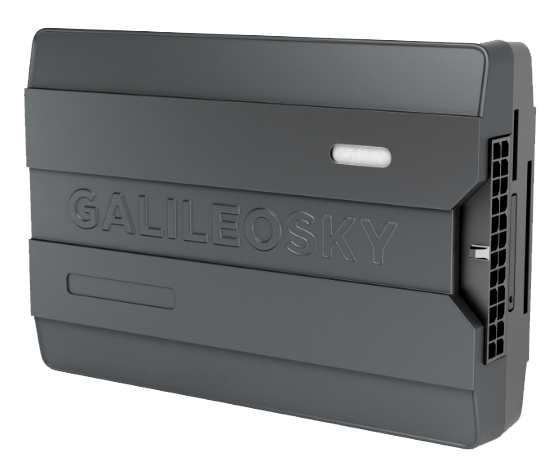

Galileosky v7.0
Galileosky 7x with external antennas combines the advanced GPS/GLONASS monitoring technology, Easy Logic and CAN Scanner. Moreover, the device allows to operate with two CAN-buses at the same time. The new feature allows to transmit data from sensors and devices, not only via RS 485, RS 232, 1-Wire interfaces but also via Bluetooth 5.0.
Mostrar más
Location and tracking
- GPS and GLONASS support
- Continuous tracking mode
Mobile networks
- GSM 850/900/1800/1900 MHz
- 2G/3G/4G Network
Power supply
- Build-in battery (Li-Ion, 600 мА)
Inputs and outputs
- 6 Universal Analog-discrete inputs
- 4 Transistor outputs
Other features
- 1-Wire, Can, RS232, RS485 interfaces
- Local and remote management
- 2 nano-SIM, USB 2.0
- Chat via Garmin Navigator when connected to RS232
- Bluetooth 5.0
- Easy Logic
- CAN scanner
- Eco Driving
- Built-in accelerometer
- Memory capacity up to 170 000 points.
- Mini-USB 2.0 PC connection
Built-in technologies
- Remote configuring
- GSM jamming detection
- Up to 3 500 polygonal geofences
- Autoinformer
- Voice communication
- Two server data transmission
- Second by second accident reconstruction
- DDD-files download
- Driving violation alerts
- Modbus
Conexión del servidor
| Servidor de la UE | tracker.navixy.com (52.57.1.136) |
| Servidor de USA | tracker.us.navixy.com (13.52.37.2) |
| Puerto de servidor | 47773 |
| Auto registro | Sí |
Información general
| Finalidad | Vehículo |
| Peso | 150 g (5.29 oz.) |
Conectividad
| Nivel de señal | Sí |
| ID del operador | Sí |
Información de ubicación
| Nivel de señal GNSS | Sí |
| LBS | Sí |
| Localización forzada por GNSS preferente a GPRS | Sí |
Características
| Control remoto de las salidas | Sí |
| Odómetro | Sí |
| Acelerómetro | Sí |
| Lectura del identificador del conductor | Sí |
Interfaces
| Entradas digitales | 6 |
| Número de salidas | 4 |
| Sensor analógico | Sí |
| Sensor de impulsos | Sí |
| Sensor de frecuencia | Sí |
