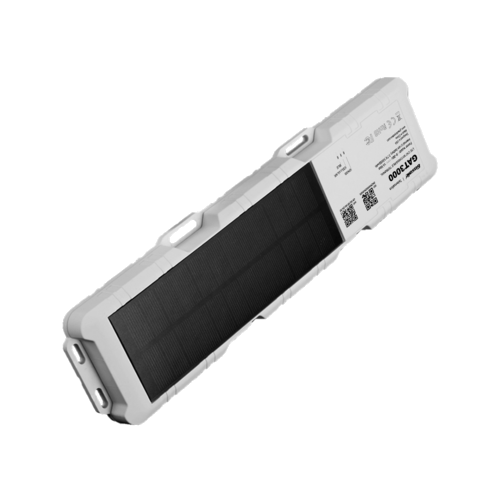

GAT-3000 is a solar-powered tracking device with long-lasting battery that is perfect for tracking valuable assets and containers.
Location and tracking
GAT-3000 supports almost all major navigation systems and can be used all over the world.
This device supports 3 separate variables for track detection giving you full flexibility over trip detection.
- 72-channel GPS, Glonass, Beidou
- Continuous tracking mode (distance/time/angle)
- Assisted GPS
- LBS
Mobile networks
GAT-3000 support wide range of networks from 2G to 4G ensuring device will be able to report even when deployed in remote rural areas.
- GSM Quad-band 850/900/1800/1900 MHz
- HSPA Global: B1/B2/B5/B6/B8 MHz
- LTE CAT-M1/NB/2G (Opt): B2, B3, B4, B8, B12, B13, B20, B28 MHz
- LTE CAT-1: B1, B2, B3, B4, B5, B8, B17, B20, B28 MHz
Power supply
Device utilizes standard external power supply.
Main advantage of this device is solar battery. Your device will auto-recharge on it’s own, prolonging it’s lifespan automatically.
It also has a sizeable internal 10000mah battery that along with solar power allows deployments for very extended periods of time.
- LI-ON 10000mAh, Battery
- Solar Charging Voltage: 6 VDC
- Operating Voltage: 9-32 VDC operational for 12V & 24V
Inputs and outputs
- 2 Digital inputs
- Ignition input
- 1-wire interface
- RS-232 interface
- 2Digital outputs
- BLE 4.2
Other features
GAT-3000 has an IP67 waterproof casing and proximity sensor that detects dismantle events.
Device can be easily mounted with use of adhesives or bolts.
- Screws, Tie Wrap, Velcro or adhesive
- IP67 rating
- Built-In GSM & GPS Antenna
- 8-Mbit memory
- LEDs
