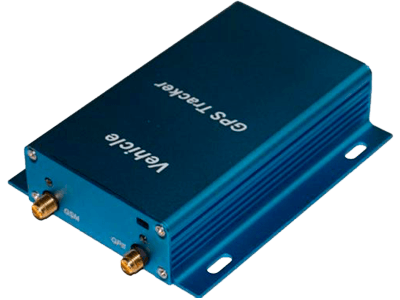

Meiligao VT310
Más de Meiligao
Meiligao VT310 is budget-class AVL tracking that can be successfully used for personal and business purpose. This tracker has a different locating modes and security options like movement and power-cut alarm. The tracker has a number of inputs and outputs for basic vehicle check and control.
Location and tracking
Meiligao VT310 model is embedded with GPS chip. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).
The tracking mode is flexible and can be configured depending on distance, time and angle. The default parameters set by the system are 100m, 60 sec, 30 degrees. When there is no movement, tracker sends data every 180 seconds.
Interfaces
- 5 digital inputs (1 negative input and 1 positive input)
- 2 analog detection inputs
- 5 outputs
- 1 USB port
Mobile networks
With Quad-band GSM 2G module Meiligao VT310 can be operated all over the world.
Power supply
Meiligao VT310 uses and voltage range 11-36V, which makes possible to install it both on cars and trucks. Device also features a built-in rechargeable backup battery. When fully charged it ensures about 3 hours of device operation (in normal conditions).
Local and remote management
Meiligao devices support management via GPRS. Also, there is a wide list of SMS commands, on which device always replies back. In particular, Server address and port, APN settings can be applied remotely with SMS.
LED Indication
VT310 has two status LEDs:
- Status LED: indicates GSM/GPRS mode
- Navigate LED: indicates GPS reception
Conexión del servidor
| Servidor de la UE | tracker.navixy.com (52.57.1.136) |
| Servidor de USA | tracker.us.navixy.com (13.52.37.2) |
| Puerto de servidor | 47738 |
| Auto registro | Sí |
Información general
| Finalidad | vehicle,asset |
| Peso | 150 g (5.29 oz.) |
Conectividad
| Nivel de señal | Sí |
| ID del operador | Sí |
Información de ubicación
| Nivel de señal GNSS | Sí |
| LBS | Sí |
Características
| Control remoto de las salidas | Sí |
| Odómetro | Sí |
Interfaces
| Entradas digitales | 5 |
| Número de salidas | 5 |
| Sensor analógico | Sí |
