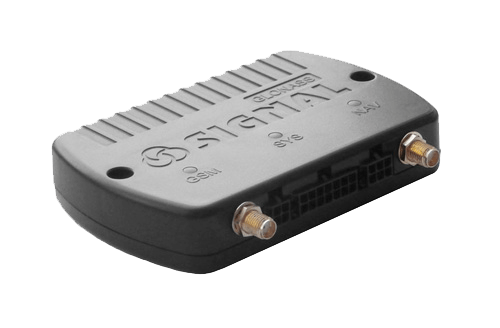

Navtelecom Signal S-2550
Navtelecom SIGNAL S-2550 is a simplified version of the SIGNAL S-2551 and is designed to solve simple tasks of vehicle monitoring. The device retained the ability to read data from the CAN bus of the vehicle using CANLog, and the ability to connect pulse, analog and digital (RS-232) fuel level sensors. The device also has a built-in battery.
Package contents
Package contents include:
- Device
- GPS/GLONASS Antenna
- GSM Antenna
- Fuse – 1 A
- Fuse holder
- 14-pin cable (harness) type Microfit-14
- 6-pin cable (harness) type Microfit-6
- Interface cable with a MiniUSB connector
- CD with software and documentation
- Packaging
Location and tracking
Navtelecom SIGNAL S-2550 model is embedded with GPS and has the support of GLONASS system. As a backup it uses Cell-ID or LBS services to get the location of the unit.
Mobile networks
With Quad-band GSM 2G module Navtelecom SIGNAL S-2550 can be operated all over the world.
Power supply
External power supply might be 8.5 – 48V, with an over-voltage protection, which makes possible to install S-2550 both on cars and vans.
S-2550 also features optional rechargeable backup battery. When fully charged it ensures about 4-5 hours of device operation (in normal conditions).
Local and remote management
Navtelecom SIGNAL S-2550 can not be controlled over GPRS, the configuration should be made by using special software «NTC Configurator».
Features
Navtelecom SIGNAL S-2550 has following features:
- Real Time Tracking
- Fuel monitoring
- Remote outputs control
- CAN-data reading
- EGTS Protocol support
- Internal battery
Conexión del servidor
| Servidor de la UE | tracker.navixy.com (52.57.1.136) |
| Servidor de USA | tracker.us.navixy.com (13.52.37.2) |
| Puerto de servidor | 47709 |
| Auto registro | Sí |
Información general
| Finalidad | Vehículo |
| Peso | 100 g (3.53 oz.) |
Conectividad
| Nivel de señal | Sí |
| ID del operador | Sí |
Información de ubicación
| Nivel de señal GNSS | Sí |
| LBS | Sí |
Características
| Control remoto de las salidas | Sí |
| Odómetro | Sí |
| Lectura del identificador del conductor | Sí |
Interfaces
| Entradas digitales | 6 |
| Número de salidas | 4 |
| Sensor analógico | Sí |
| Sensor de impulsos | Sí |
| Sensor de frecuencia | Sí |
