Portman GT3101
Más de PORTMAN

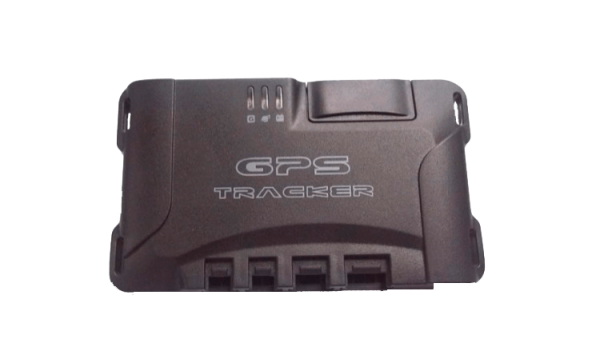

Portman GT3101 integrates GPS tracking functions and basic car alarm control functions into one unit. You can monitor the vehicle location and control the car alarm remotely. In addition, the unit will send event report if any triggers occur. It has built-in 7 outputs and 2 inputs to perform essential alarm and tracking functions.
Package contents
Portman GT3101 is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.
The standard package contains:
- Main unit
- Operation manual
- Wire harness
- Build-in tiled sensor
- PC-setup Cable
- Built-in 300mA lithium-ion battery
Location and tracking
Portman GT3101 is embedded with GPS, it doesn’t support GLONASS or alternative systems.
Device supports either continuous or interval tracking mode.
Mobile networks
Portman GT3101 has a Quad-band GSM 2G that allows to operate it all over the world.
Power supply
GT3101 features a rechargeable 300 mAh battery. When fully charged it ensures about 3-5 hours of device operation (in normal conditions).
Local and remote management
GT3101 can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.
LED Indication
Portman GT3101 has three LED indicating:
- Power
- GSM/GPRS signal
- GPS signal reception
Conexión del servidor
| Servidor de la UE | tracker.navixy.com (52.57.1.136) |
| Servidor de USA | tracker.us.navixy.com (13.52.37.2) |
| Puerto de servidor | 47741 |
| Auto registro | Sí |
Información general
| Finalidad | Vehículo |
| Peso | 50 g (1.76 oz.) |
Información de ubicación
| Nivel de señal GNSS | Sí |
Características
| Control remoto de las salidas | Sí |
| Odómetro | Sí |
| Lectura del identificador del conductor | Sí |
Interfaces
| Entradas digitales | 2 |
| Número de salidas | 7 |
