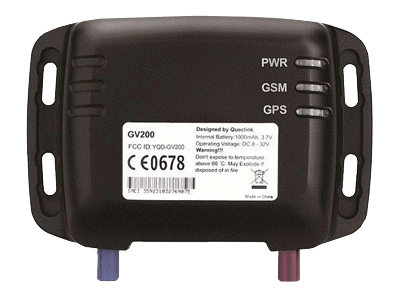

Queclink GV200

GV200 is a solid GPS tracker that is the most suitable for the transport companies, because it has a lot of different options to track and control the vehicles.

High-sensitive GPS receiver supports GPS and GLONASS systems and can track the vehicle permanently or periodically by a mobile equipment. GV200 has a range of intupoutput interfaces for external devices and GPS or GSM antenna.

The customer can get location, emergency, low battery reports from that devise.

Package contents

Package contents include:

• Queclink GV200 device
• User cable
• GSM antenna
• GPS antenna

Location and tracking

Queclink GV200 model is embedded with GPS and it also supports GLONASS technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

Queclink GV200 uses a Quad-band GSM 2G module that allows to operate it all over the world.

Power supply

GV200 has PIN 24 is named as VIN which input voltage range is 8V to 32V DC and can be connected to vehicle’s battery directly (12V or 24V DC).

Local and remote management

Queclink GV200 tracker can be fully controlled over GPRS, including configuration of tracking modes and controlling outputs. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

Interfaces

There is a 24 PIN connector on GV200. It contains the interface of power, I/O, RS232, microphone, speaker, etc.

The device has 3 analog inputs, 4 digital inputs.

LED Indication

Queclink GV200 has three LEDs:

• GPS LED
• GSM LED
• Power LED

Accessories

The manufacturer offers original accessories:

• 12V DC power supply
• USB-232 data cable
• Uart cable
• Extend cable
