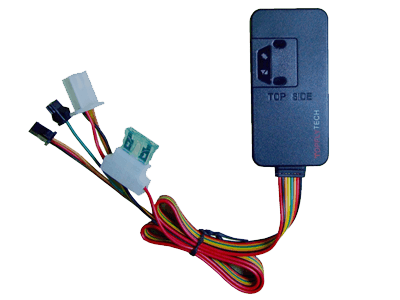

TopFlyTech T8803

TopFlyTech T8803 is a basic model for vehicle tracking, a simplified modification of T8803 "PRO". It is designed for common applications and might be a good choice for private car owners and budget fleet tracking without special requirements.

Mostrar más

Package content

The package contents:

  • GPS tracker
  • One digital input extension line (170 cm)
  • Sponge double-side adhesive tape
  • Power supply extension line (170 cm)

Also as an option, manufacturer offers

  • Engine block relay
  • Microphone and SOS line

Location and tracking

T8803 is embedded with GPS and doesn’t have support of GLONASS and alternative systems.  It neither supports Assisted GPS technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

As a basic model in series, T8803 has just simple time/interval tracking.

Mobile networks

With Quad-band GSM 2G module T8803 can be operated all over the world.

Power supply

External power supply might be 6-36V, which makes it possible to install T8803 both on cars and vans.

T8803 also features a built-in rechargeable backup battery. When fully charged it ensures about 3-4 hours of device operation (in normal conditions).

Local and remote management

TFT T8803 tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

T8803 has two LEDs:

  • Red LED indicates GSM/GPRS mode
  • Blue LED indicates GPS reception

The LEDs light goes out automatically in five minutes after the device is switched on.


Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor47744
Auto registro

Información general

FinalidadVehículo
Peso70 g (2.47 oz.)

Conectividad

Nivel de señal
ID del operador

Información de ubicación

Nivel de señal GNSS
LBS

Características

Control remoto de las salidas
Odómetro

Interfaces

Entradas digitales2
Número de salidas1
