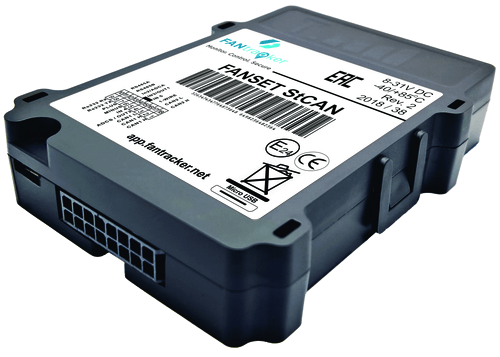

Fanset FMS500 StCAN
FANSET StCAN is a device with GPS/Glonass and GSM connectivity, designed for object tracking. It is able to acquire information on object location, speed, direction, etc. and transfer the data via GSM network. Digital and analog inputs of the device may be used to connect different external sensors/devices. Outputs of the device may be used to control external equipment remotely. Flexible configuration allows users/dealers to adjust the device to meet their specific requirements. All device settings and firmware are updated remotely via GPRS. It is possible to create setting templates for groups of vehicles, use mass updates and create unique device operation logic, fulfilling requirements of most cases on the market.
Location and tracking
- GPS/GLONASS support
- Continuous tracking mode
- LBS support
Mobile networks
- 2G Network
- GSM Quad Band
Power supply
- Build-in battery 700mAh (optional)
- External power supply (8 – 31V)
Inputs and outputs
- 4 Digital input
- 2 Analog inputs
- 2 Outputs
Other features
- 2 CAN lines operating simultaneously
- Internal antennas
- GSM jamming detection
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47727 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Size | 68x91x19 mm (2.68x3.58x0.75 in) |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | GSM Quad Band |
| Cellular network generation | 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| GPS | Yes |
| GLONASS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
Interfaces
| Discrete inputs | 5 |
| Number of outputs | 2 |
| Analog sensor | Yes |
| Frequency sensor | Yes |
