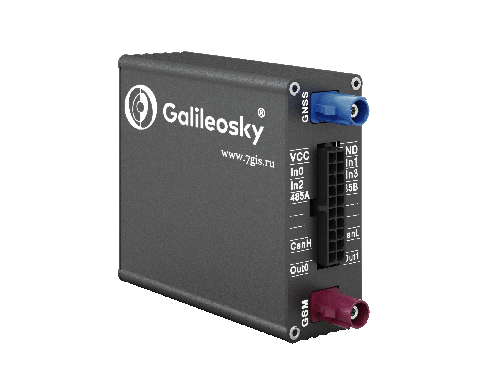

Galileosky Base Block
Galileosky Base Block is a compact and lightweight GPS/GLONASS vehicle tracker. It has 4 universal inputs that can be customized as analog, impulse or frequency ones. RS-485 interface and a possibility of connecting to CAN-bus of the vehicle make its range of functions very wide. Metal body and IP54 protection make it extremely durable.
Show more
Location and tracking
- GPS, GLONASS
- Continous tracking mode
Mobile networks
- 2G
Power supply
- Build-in battery 600 mAh
Inputs and outputs
- 4 inputs
- 2 outputs
- 1-Wire
- RS-485
- External CAN Interface
- USB 2.0
Other features
- IP54 protection
- Metal/plastic body
- 2Mb internal memory
- -40 … +85 C operating temperature
- Chat via Garmin Navigator when connected to RS232
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47773 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 150 g (5.29 oz.) |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
Interfaces
| Discrete inputs | 4 |
| Number of outputs | 2 |
| Analog sensor | Yes |
| Impulse counter | Yes |
| Frequency sensor | Yes |
Input Fields
State Fields
Events monitoring
