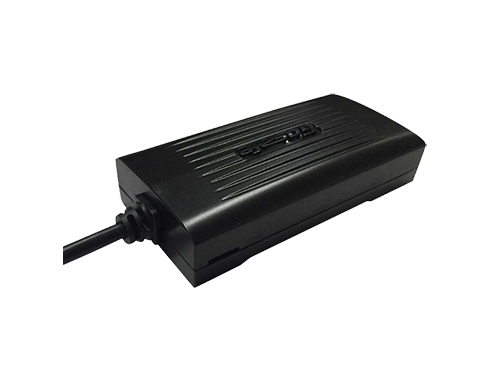

GoSafe G3C
The G3C competitive tracking unit from Gosafe offers superior GPS performance, with built-in internal 750mAh back-up battery, 3-axis accelerometer for motion sense, and with one input and one output (I/O). The G3C is a complete tracking unit with two version 2G as well as 3G covering all 5 bands of 3G communication. G3C is designed for 12 or 24 volt mobile vehicles with quick and easy installation procedure.
Location and tracking
GoSafe G3C model is embedded with GPS chip. It supports Assisted GPS (A-GPS) technology as well. It uses Cell ID location (also known as LBS-tracking) as the back-up, when no satellites signals are available.
Mobile networks
With a Quad-band GSM module G3C can operate all over the world where 2G networks are supported.
Features
Key features of the GoSafe G3C device are:
- 750 mAh battery.
- 3G support covering all 5 bands
- 3-axis accelerometer
Power supply
External power supply range might be 12/24V, which makes possible to install device both on cars and vans.
GoSafe G3C also features an optional rechargeable 750 mAh backup battery. When fully charged it ensures about 6-9 hours of device uptime (in normal conditions).
Local and remote management
GPS tracker GoSafe G3C can be fully controlled over GPRS, including configuration of tracking modes and outputs control. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.
In case ‘firmware’ of the device has an (some) error(s) or needs to be upgraded to provide the user with newly implemented services, the device can upgrade its internal ROM file over the air (Firmware OTA), using GPRS. The users do not need to visit the vehicle individually to download the new firmware on those vehicles.
LED Indication
G3C has three LEDs
- LED indicating GPS reception
- LED indicating GSM/GPRS reception
- LED indicating Power status
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47771 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 80 g (2.82 oz.) |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
Interfaces
| Discrete inputs | 1 |
| Number of outputs | 1 |
