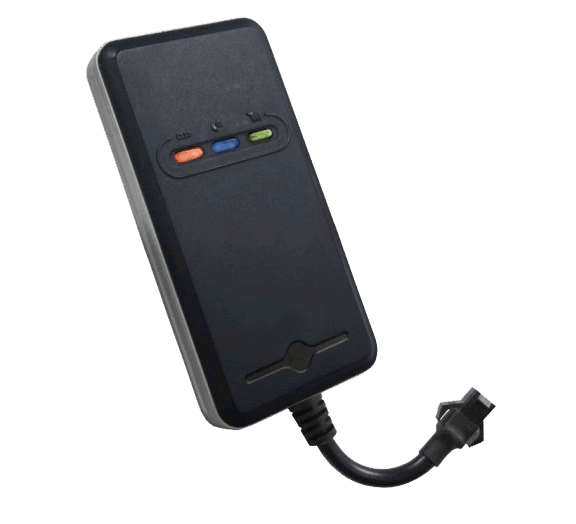

Concox GT02
Concox GT02 or TR02 is a very simple vehicle GPS tracker. It is suitable for fleet management when knowing the location of the vehicle is most important.
Package contents
Concox GT02 is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.
The standard package contains:
- Device
- Power cord
- User Manual
Location and tracking
Concox GT02 is embedded with GPS, it doesn’t support GLONASS or alternative systems.
As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).
Mobile networks
Concox GT02 has a Quad-band GSM 2G that allows to operate it all over the world.
Power supply
External power supply range might be 9V – 36V, which makes possible to install device both on cars and vans.
Local and remote management
GT02 can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.
LED Indication
Concox GT02 has three LED indicating:
- Backup battery charge
- GSM/GPRS mode
- GPS signal reception
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47755 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 53 g (1.87 oz.) |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
Features
| Odometer | Yes |
