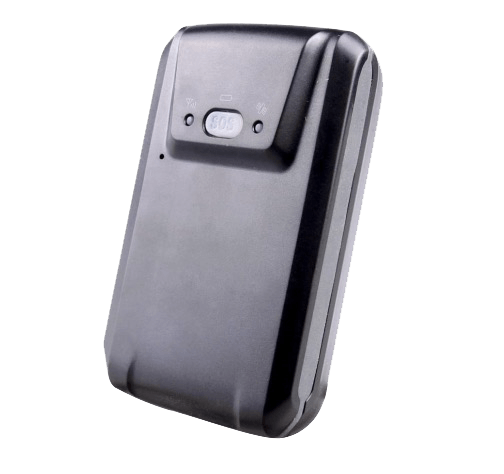

Concox GT03A
Concox GT03A is a compact light-weight vehicle GPS tracker. It is a very simple device, but suitable for personal use and vehicle monitoring.
Package contents
Concox GT03A is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.
The standard package contains:
- GT03A device
- USB cable
- Charger
- Battery
- User Manual
Location and tracking
Concox GT03A is embedded with GPS, it doesn’t support GLONASS or alternative systems.
There are only two basic tracking modes, which do not provide too much flexibility: by time interval and by distance.
As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).
Mobile networks
Concox GT03A has a Quad-band GSM 2G that allows to operate it all over the world.
Power supply
GT03A features a rechargeable 2600 mAh battery. When fully charged it ensures about a day of device operation (in normal conditions).
Local and remote management
GT03A can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.
LED Indication
Concox GT03A has three LED indicating:
- Backup battery charge
- GSM/GPRS mode
- GPS signal reception
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47755 |
| Auto registration | Yes |
General information
| Purpose | Asset |
| Weight | 96 g (3.39 oz.) |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
Features
| Odometer | Yes |
