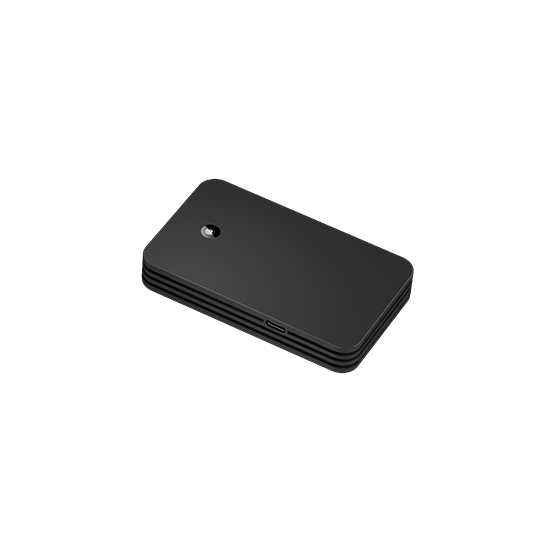

Jimi JM-LL309
The LL309 is a 4G asset tracker that provides precise location tracking through GPS, BDS, and LBS. It’s equipped with a built-in temperature and humidity sensor, continuously monitoring conditions and sending instant alerts over the 4G network if any deviations occur, making it ideal for safeguarding perishable goods. Even when offline, the LL309 can store up to 20,000 records of location, temperature, and humidity, which can be easily exported via a Type-C cable for further analysis. It’s a versatile solution, perfect for refrigerated trucks, parcels, and other sensitive cargo tracking applications.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47755 |
| Auto registration | Yes |
General information
| Purpose | Asset |
| Weight | 108 g (3.81 oz.) |
| Size | 100×60×15 mm (3.94x2.36x0.59 in) |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | LTE-TDD: B41, LTE-FDD: B2/B4/B5/B7/B12/B14/B17/B25/B26/B66 |
| Cellular network generation | LTE CAT-1 |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Wi-Fi LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| GPS | Yes |
| Beidou | Yes |
Features
| Odometer | Yes |
| Built-in battery | Yes |
| Battery capacity | 2500 mAh |
Interfaces
Input Fields
State Fields
Events monitoring
