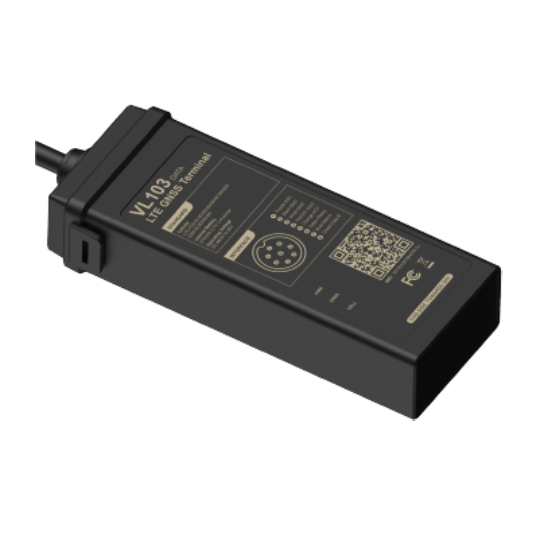

Jimi JM-VL103D
The VL103D by Jimi IoT is a small yet powerful vehicle tracker that offers discreet installation and a robust feature set. With LTE, GNSS, an RS485 interface, and an IP66 waterproof rating, this compact tracker is designed for reliability and versatility. Its LTE communication with GSM (2G) fallback guarantees consistent connectivity, while the broad 9-90V input voltage range makes it compatible with almost any vehicle. Ideal for various applications, the VL103D excels at recovering stolen vehicles and managing motorcycles, passenger cars, and light commercial vehicles.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47755 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 55 g (1.94 oz.) |
| Size | 92x40x20 mm (3.62x1.57x0.79 in) |
| Waterproof class | IP66 |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | GSM: B2/B3/B5/B8, LTE B1/B2/B3/B4/B5/B7/B8/B28AB |
| Cellular network generation | LTE CAT-1, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| GPS | Yes |
| Beidou | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 270 mAh |
Interfaces
| Discrete inputs | 1 |
| Number of outputs | 1 |
| Analog sensor | Yes |
Input Fields
State Fields
Events monitoring
