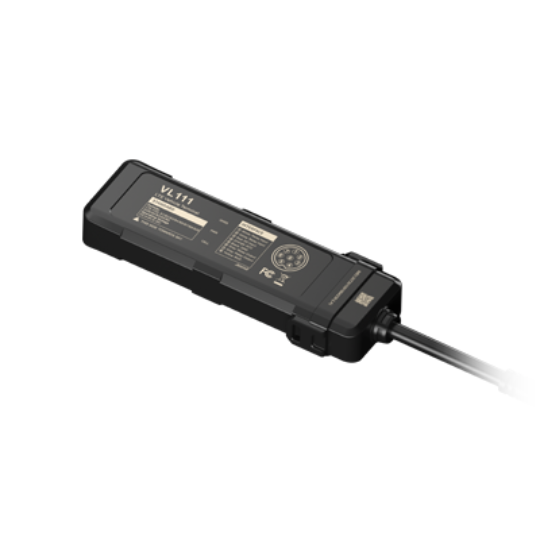

Jimi VL111
The VL111 is a compact 4G LTE tracking terminal with a built-in GNSS module that supports GPS and BeiDou to determine the location of the vehicle in real time and a built-in relay that allows the manager or operator to remotely cut off the fuel or power supply to the vehicle when an exception occurs. The VL111 also offers features such as historical trip playback and automatic power disconnection in the event of a low external battery.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47755 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 42.9 g (1.51 oz.) |
| Size | 92x28x14 mm (3.62x1.1x0.55 in) |
| Waterproof class | IP66 |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28, LTE-FDD: B1/B3/B7/B8/B20/B28, LTE-TDD: B34/B38/B39/B40/B41, GSM: B2/B3/B5/B8 |
| Cellular network generation | LTE Cat 1, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| GPS | Yes |
| Beidou | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
Interfaces
| Discrete inputs | 1 |
| Number of outputs | 1 |
Input Fields
State Fields
Events monitoring
