Jimi VL512

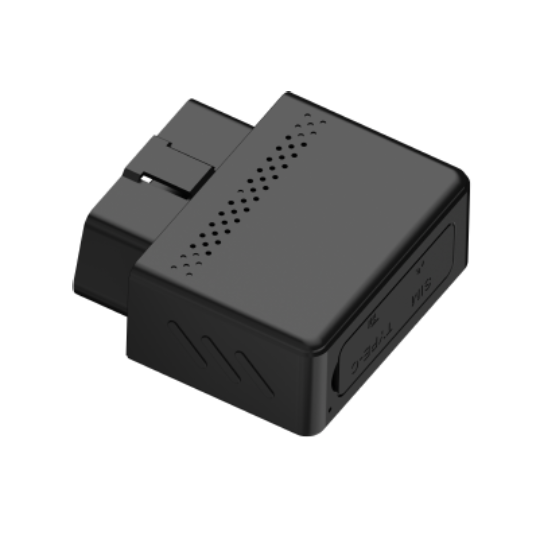

The VL512 is a specialized 4G OBDII tracker tailored for vehicular use. Boasting a compact design and an OBD port, this device easily fits into practically any passenger car, making it perfect for managing fleets. Its LTE communication with GSM (2G) fallback guarantees a strong connection in nearly every situation, while the GPS+BDS positioning system delivers enhanced accuracy for tracking your fleet's location and status. The VL512 enables you to monitor the exact whereabouts, direction, and speed of each vehicle, and sends alerts when any of the four types of hazardous driving behaviors are detected. Additionally, the discreet built-in microphone allows remote monitoring and recording of ambient sounds surrounding the device.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47755 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 42 g (1.48 oz.) |
| Size | 51x50x22 mm (2.01x1.97x0.87 in) |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | LTE FDD: B1/B3/B7/B8/B20/B28, GSM 850/900/1800/1900 |
| Cellular network generation | LTE CAT-1, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| GPS | Yes |
| Beidou | Yes |
Features
| Odometer | Yes |
| Built-in battery | Yes |
| Battery capacity | 50 mAh |
Interfaces
| Discrete inputs | 1 |
| CAN/OBDII reader type | Internal |
Input Fields
State Fields
Events monitoring
