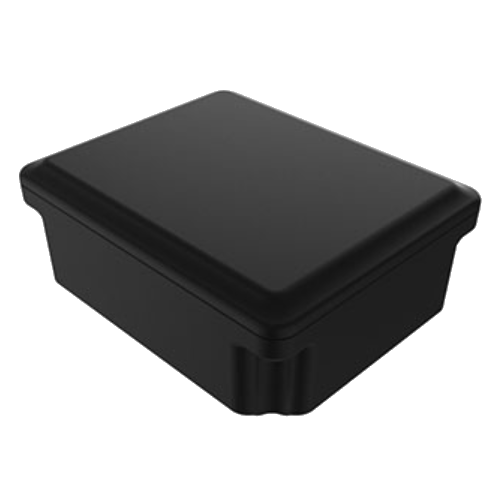

Kingwo IoT (Vodofo) NT06E
Kingwo IoT (Vodofo) NT06E is an eMTC NB CatM1 Asset GPS Tracker with 8100Mah battery, compact size, and built-in GPS/GSM antenna, low cost, low data consumption. It’s ideally suitable for Asset tracking market. Device will send a notification when battery charge is low or Kingwo NT06E was detached from the object. This tracker will show you all necessary information: GPS position, quality of GNSS and GSM signal, GSM carrier label. Device can also determine the position via the LBS. If you are far from the tracker, you can change the tracking parameters distantly, because this model supports GPRS commands. Kingwo IoT (Vodofo) NT06E also supports NB-IOT that allows to reduce battery consumption pretty well.
Location and tracking
- Amount of channels: 50
- Sensitivity: -147 dBm
- Position accuracy: 5-10 m
- Accuracy: 5m CEP
- Cold start: Less than 27s
- Hot start: Less than 1s
- Antenna: Internal High Gain
Mobile networks
- GPRS: 850/900/1800/1900MHz
- FDD- Lte:B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/B19/ B20/ B25/ B26*/ B28
- TDD- Lte: B39 (For CatM1 only)
- Antenna: Internal High Gain
- Type of the SIM card: Micro SIM
- Module: QuectelBG96
Power supply
- Build-in disposable Lithium-ion battery 3.6V 8100mAh
- Ultra-low discharge rate: Less than 1%, store one year below 25℃
- Power consumption: Average working current <100mA; Power save current <15uA;
Environmental parameter
- Working Temperature: -20℃ ~ +70℃
- Humidity: 5% ~ 95% (no fog)
- Ingress Protection Rating: IP65
Other features
- Position and monitor
- GPS Positioning
- Temperature monitor
- AGPS Positioning
- LBS Positioning（Need map database support）
- Intelligent Tracking
- Motion alarm
- Blind Zone Compensation
- Clock Mode
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47648 |
| Auto registration | Yes |
General information
| Purpose | Asset |
| Weight | 161 g (5.68 oz.) |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
