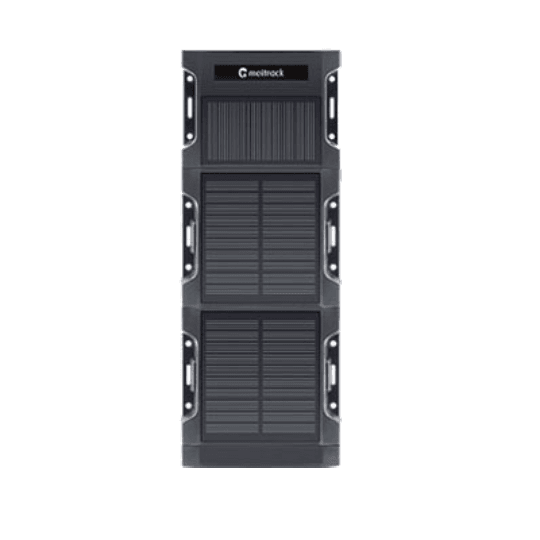

Meitrack TA255
The Meitrack TA255 series is specifically crafted for asset tracking purposes. These devices boast a powerful battery (up to 22400 mAh), supplemented by solar panels and high-capacity batteries to guarantee long-lasting battery life. Enhanced positioning is achieved through the WiFi positioning feature. Additionally, these trackers can monitor temperature and humidity using Bluetooth connectivity. For easy installation, industrial magnets can be utilized to effortlessly attach the devices to flat metal surfaces. Furthermore, the Meitrack TA255 series supports automatic firmware and configuration updates for seamless operation.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47752 |
| Auto registration | Yes |
General information
| Purpose | Asset |
| Size | 71x95x27 mm (2.8x3.74x1.06 in) |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27, EGPRS: 850/900/1800/1900MHz |
| Cellular network generation | Cat M1, CAT NB2, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over SMS | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Beidou | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 22400 mAh |
Interfaces
| Discrete inputs | 1 |
| Number of outputs | 1 |
| Analog sensor | Yes |
