Ascend Group MT1X

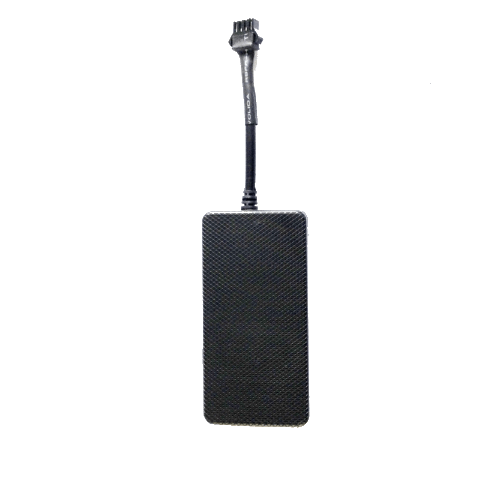

Ascend Group MT1X is a device that uses the Global Positioning System to determine the precise location of a vehicle to which it is connected and record the position of the asset at regular intervals. The recorded location data can be stored in the storage, or it can be transmitted to a monitoring platform. The device has a relay and the necessary wires for connection. Also, this model has SOS button and micrphone for voice monitoring.
Mostrar mais
Location and tracking
- Continuous tracking mode
- LBS support
Mobile networks
- 850/900/1800/1900 MHZ
- 2G Network
Power supply
- 180 mAh build-in battery
- 8-50VDC external power supply
Inputs and outputs
- 1 Discrete input
- 1 Digital output
Other features
- Emergency button
- Remote management
Conexão do servidor
| Servidor da UE | tracker.navixy.com (52.57.1.136) |
| Servidor dos EUA | tracker.us.navixy.com (13.52.37.2) |
| Porta do servidor | 47735 |
| Auto cadastro | Sim |
Informação geral
| Propósito | Veículo |
| Antena interna (GNSS) | Yes |
| Antena interna (Conexão) | Yes |
Conectividade
| Nível do sinal | Sim |
| ID do operador | Sim |
| Tipo de rede celular | GSM 850/900/1800/1900 |
| Geração de rede celular | 2G |
Informações de localização
| LBS | Sim |
| GPS | Yes |
Caracteristicas
| Controle remoto das saídas | Sim |
| Hodômetro | Sim |
Interfaces
| Entradas digitais | 1 |
| Número de saídas | 1 |
Campos de entrada
Campos de status
Monitoramento de eventos
