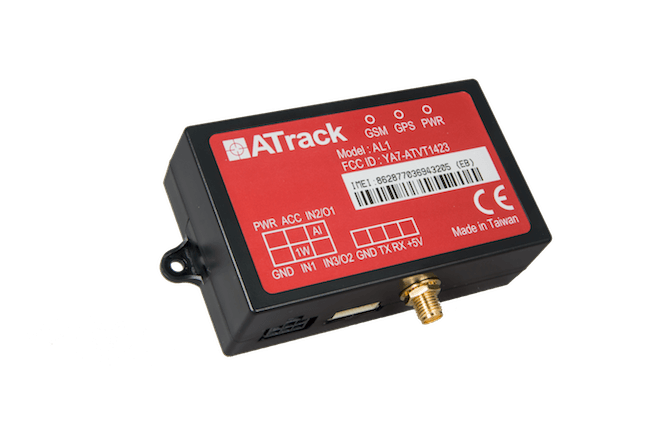

ATrack AL1

ATrack AL1 is a vehicle GPS tracker with GPS and GSM/GPRS communication which is able to monitor vehicle location and remote control via GSM/GPRS network. With its intelligent event control engine, users can define various combinations of vehicle conditions and generate various actions to meet their unique requirements.

Mostrar mais

Package contents

ATrack AL1 package contains the following device/accessories:

  • Device
  • Power/IO Cable
  • Serial Cable

Product features:

  • Small and easy installation
  • Data communication by SMS/USSD/TCP/UDP
  • High accuracy GPS positioning
  • GSM jamming detection
  • Built-in 3-axis G-sensor
  • FOTA firmware upgrade using FTP
  • Configurable Real Time Tracking & Logging
  • Intelligent event control engine
  • 1-Wire® protocol supported
  • 3 Configurable GPIOs
  • Roaming preference settings
  • Harsh driving behavior events
  • Configurable power management
  • 32 user defined geofences
  • Support Garmin® FMI
  • Support external fuel level sensor

Location and tracking

ATrack AL1 is embedded with GPS. It does not support A-GPS, or GLONASS technology.

As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

ATrack AL1 has a Quad-band GSM 2G module that allows to operate it all over the world.

Power supply

External power supply might be 8-40V, which makes possible to use ATrack AK1 with all car models.

Local and remote management

ATrack AL1 can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

ATrack AL1 model has three LEDs:

  • Power LED – indicates power status
  • GPS LED – indicates GPS signal
  • GSM LED – indicates GSMS signal

Conexão do servidor

Servidor da UEtracker.navixy.com (52.57.1.136)
Servidor dos EUAtracker.us.navixy.com (13.52.37.2)
Porta do servidor47712
Auto cadastroSim

Informação geral

PropósitoVeículo
Peso78 g (2.75 oz.)

Conectividade

Status do roamingSim
Nível do sinalSim
ID do operadorSim

Informações de localização

Nível de sinal GNSSSim
LBSSim

Caracteristicas

Controle remoto das saídasSim
HodômetroSim
Leitura de ID do motoristaSim

Interfaces

Entradas digitais5
Número de saídas2
Sensor analógicoSim
