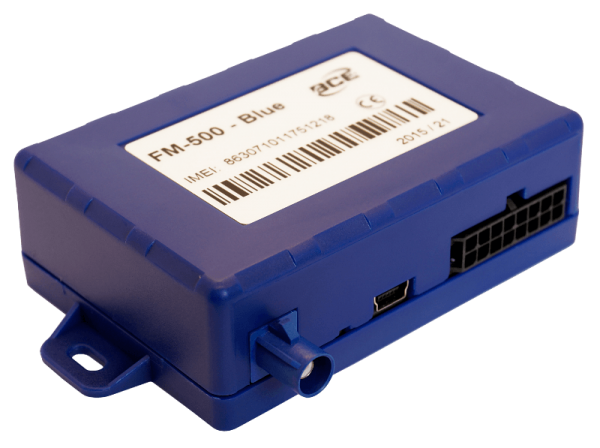

BCE FM-500 Blue
BCE FM-500 Blue is a vehicle tracking and controlling device with multiple functions. It covers a wide range of applications and requirements of professional users by providing configurable inputs/outputs and reliable GPRS communication ability.
Package contents
BCE FM-500 Blue package content includes:
- BCE FM-500 Blue device
- External GPS antenna
- Wires + 1A Fuse
Also, the device can be sent with optional internal back up 700mAh battery, as claimed by manufacturer.
Location and tracking
FM-500 Blue model is embedded with GPS chip and it supports GLONASS as well. Also it supports Assisted GPS (A-GPS) technology. It uses Cell ID location (also known as LBS-tracking) as the back-up, when no satellites signals are available.
Mobile networks
With a Quad-band GSM module BCE FM-500 Blue can operate all over the world where 2G networks are supported.
Features
BCE FM-500 Blue model features:
Interfaces
- FMS CAN (protocol J1939)
- OBDII (diagnostic protocol of light vehicles, SAE-1979 w/o adapters)
- CAN protocols of light vehicles (without adapters)
Inputs and outputs
- 4x digital inputs (frequency, impulse counter, ON/OFF modes)
- 3x analogue inputs, 11 bit, 0-36V
- 3x digital outputs
Power supply
External power supply range might be 9V – 40V, which makes possible to install device both on cars and vans.
Local and remote management
BCE FM-500 Blue can be fully controlled over GPRS, including configuration of tracking modes and outputs control. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.
Also, you can configure and manage the device via the manufacturer’s software “BCE configurator”.
LED Indication
BCE FM-500 Blue has one LED for GSM/GPS status.
Conexão do servidor
Servidor da UE | tracker.navixy.com (52.57.1.136) |
Servidor dos EUA | tracker.us.navixy.com (13.52.37.2) |
Porta do servidor | 47727 |
Auto cadastro | Sim |
Informação geral
Propósito | Veículo |
Peso | 73 g (2.58 oz.) |
Conectividade
Nível do sinal | Sim |
ID do operador | Sim |
Informações de localização
Nível de sinal GNSS | Sim |
LBS | Sim |
Caracteristicas
Controle remoto das saídas | Sim |
Hodômetro | Sim |
Acelerômetro | Sim |
Leitura de ID do motorista | Sim |
Interfaces
Entradas digitais | 8 |
Número de saídas | 2 |
Sensor analógico | Sim |
Sensor de frequência | Sim |
