BCE FMS500 StCan MQTT (IOTM)

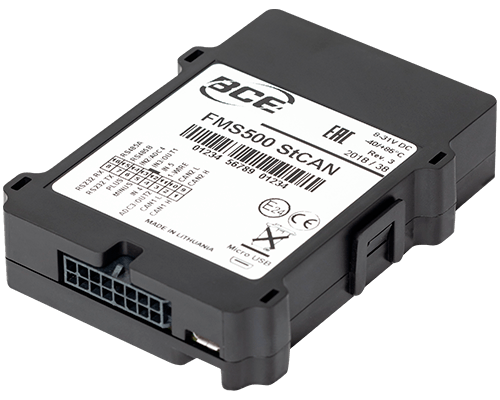

FMS500 StCAN is a device with GPS/Glonass and GSM connectivity, designed for object tracking. It is able to acquire information on object location, speed, direction, etc. and transfer the data via GSM network. Digital and analog inputs of the device may be used to connect different external sensors/devices. Outputs of the device may be used to control external equipment remotely.
Flexible configuration allows users/dealers to adjust the device to meet their specific requirements. All device settings and firmware are updated remotely via GPRS. It is possible to create setting templates for groups of vehicles, use mass updates and create unique device operation logic, fulfilling requirements of most cases on the market. This tracker uses MQTT protocol for data transferring.
Location and tracking
- GPS/GLONASS support
- Continuous tracking mode
- LBS support
Mobile networks
- 2G Network
- GSM Quad Band
Power supply
- Build-in battery 700mAh (optional)
- External power supply (8 – 31V)
Inputs and outputs
- 4 Digital input
- 2 Analog inputs
- 2 Outputs
Other features
- 2 CAN lines operating simultaneously
- Internal antennas
- GSM jamming detection
Conexão do servidor
| Servidor da UE | tracker.navixy.com (52.57.1.136) |
| Servidor dos EUA | tracker.us.navixy.com (13.52.37.2) |
| Porta do servidor | 1883 |
Informação geral
| Propósito | Veículo |
Conectividade
| Status do roaming | Sim |
| Nível do sinal | Sim |
| ID do operador | Sim |
Informações de localização
| Nível de sinal GNSS | Sim |
| LBS | Sim |
Caracteristicas
| Controle remoto das saídas | Sim |
| Hodômetro | Sim |
| Acelerômetro | Sim |
| Leitura de ID do motorista | Sim |
Interfaces
| Entradas digitais | 8 |
| Número de saídas | 2 |
| Sensor analógico | Sim |
| Sensor de frequência | Sim |
