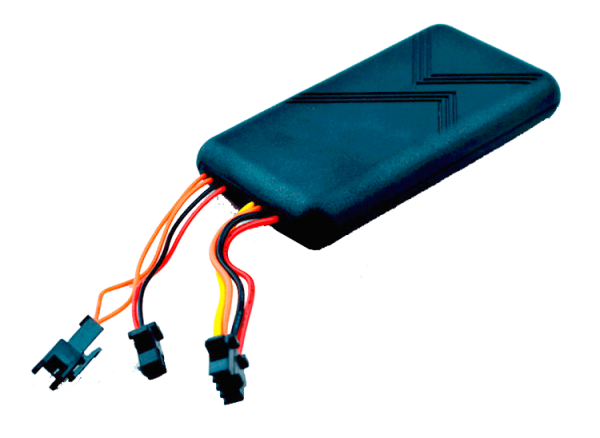

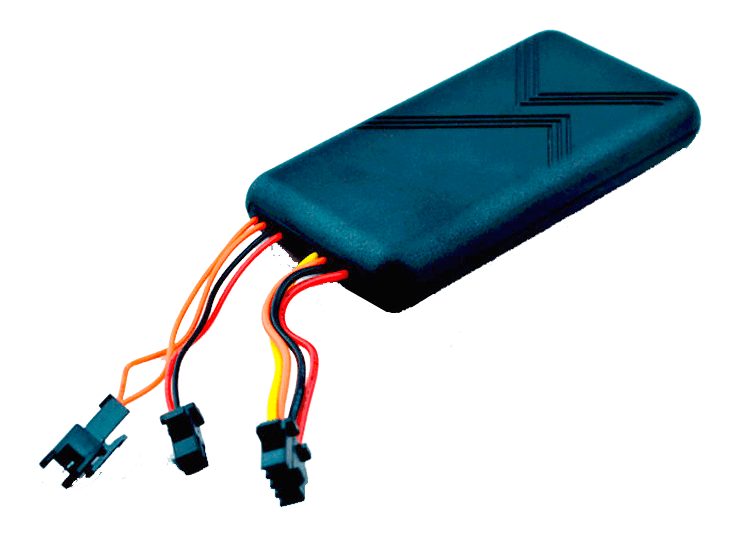

Defenstar DS811
Defenstar DS811 is vehicle GPS tracker with a wide range of options to prevent the car stealing. It is suitable for personal use and fleet management when remote control of the vehicle is the most important.
Package contents
Defenstar DS811 is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.
The standard package contains:
- Device
- Power cord
- Relay
- Microphone
- SOS alarm cable & button
- User Manual
Location and tracking
Defenstar DS811 is embedded with GPS, it doesn’t support GLONASS or alternative systems.
As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).
Mobile networks
DS811 has a Quad-band GSM 2G that allows to operate it all over the world.
Power supply
DS811 features a rechargeable 450 mAh battery. When fully charged it ensures about 3-5 hours of device operation (in normal conditions).
Local and remote management
Defenstar DS811 can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.
LED Indication
Defenstar DS811 has three LED indicating:
- Backup battery charge
- GSM/GPRS mode
- GPS signal reception
Conexão do servidor
| Servidor da UE | tracker.navixy.com (52.57.1.136) |
| Servidor dos EUA | tracker.us.navixy.com (13.52.37.2) |
| Porta do servidor | 47734 |
| Auto cadastro | Sim |
Informação geral
| Propósito | Veículo |
| Peso | 35 g (1.23 oz.) |
Caracteristicas
| Controle remoto das saídas | Sim |
| Hodômetro | Sim |
Interfaces
| Entradas digitais | 2 |
| Número de saídas | 2 |
