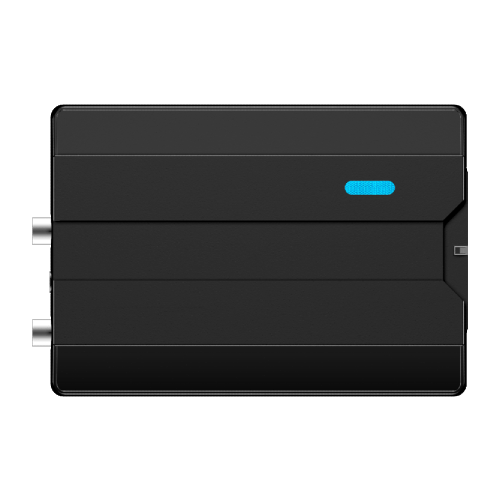

Galileosky 7x LTE
Galileosky 7x LTE with external antennas combines the advanced GPS/GLONASS monitoring technology, Easy Logic and CAN Scanner, as well as the application for drivers Exigner Driver App. Moreover, the new device allows to work with two CAN-buses at the same time. The new feature allows to transmit data from sensors and devices, not only via RS 485, RS 232, 1-Wire interfaces but also via Bluetooth 5.0. Besides such basic tasks as vehicle monitoring, driving style and fuel consumption control, programmable Galileosky 7x LTE, like each of the 7x devices range performs the most complex tasks of automation and optimization of fleets as well as stationary objects.
You can control the central lock, start the car engine, turn on or off the headlights, change the temperature and humidity level automatically. You can even create polygonal geofences and set different speed limits for each. Impressive features are provided by Easy Logic technology.
Location and tracking
- GPS, GLONASS support
- Continuous tracking mode
- LBS Support
- Coordinates determination accuracy 2,5 m
- Receiver sensitivity – 164 dBm
Mobile networks
- 2G / 3G / LTE
- 2G: 850/900/1800/1900 MHz
- 3G: 800/850/900/1900/2100 MHz
- LTE: Cat M1 / Cat NB1
Power supply
- Build-in battery Li-Ion, 600 mAh
- External power supply 9-39 V
Communication protocols
- Galileosky: variable length-tag
- EGTS
- Galileosky with compression
Inputs and outputs
- 6 Universal inputs: Discrete, analog, frequency and impulse
- CANBUS protocols: J1939, FMS, J1979, OBD-II
- 2 CAN inputs
- 1-Wire
- RS 485 and RS 232
- Mini-USB 2.0
Case
- Size: 102 x 68 х 24 mm
- Body material: Plastic
- Weight: 150 gm
- IP degree of protection: IP 54
Other features
- Remote configuring
- Dual SIM
- GSM jamming detection
- Up to 3 500 polygonal geofences
- Autoinformer
- Voice communication
- Two server data transmission
- Second by second accident reconstruction
- DDD-files download
- Driving violation alerts
- Modbus
- Memory capacity up to 170 000 points; up to 2 500 000 points for each GB by using MicroSD card
Conexão do servidor
Servidor da UE | tracker.navixy.com (52.57.1.136) |
Servidor dos EUA | tracker.us.navixy.com (13.52.37.2) |
Porta do servidor | 47773 |
Auto cadastro | Sim |
Informação geral
Propósito | Veículo |
Peso | 150 g (5.29 oz.) |
Conectividade
Nível do sinal | Sim |
ID do operador | Sim |
Informações de localização
Nível de sinal GNSS | Sim |
LBS | Sim |
Localização forçada pelo GNSS em preferência ao GPRS | Sim |
Caracteristicas
Controle remoto das saídas | Sim |
Hodômetro | Sim |
Acelerômetro | Sim |
Leitura de ID do motorista | Sim |
Interfaces
Entradas digitais | 6 |
Número de saídas | 4 |
Sensor analógico | Sim |
Sensor de pulso | Sim |
Sensor de frequência | Sim |
