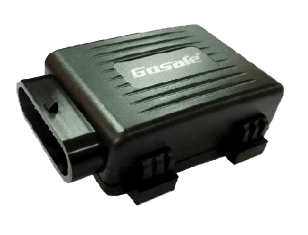

GoSafe G3A
The G3A is a new generation vehicle or asset tracking and telemetry device designed for maximum autonomy and ease of use. It is intended for use to protect and trace items such as containers, caravans, fixed plant, construction equipment, in shore boats and truck trailers. It can also be used for temporary tracking of vehicles for consignment purposes as well as covert “slap and track” operations.
Location and tracking
GoSafe G3A model is embedded with GPS chip. It doesn’t support Assisted GPS (A-GPS) technology. It uses Cell ID location (also known as LBS-tracking) as the back-up, when no satellites signals are available.
Mobile networks
With a Quad-band GSM module G3A can operate all over the world where 2G networks are supported.
Features
Key features of the GoSafe G3A device are:
- 2 outputs, 2 inputs and one ignition line.
- Waterproof design
- Low power consumption
Power supply
External power supply range might be 8V – 36V, which makes possible to install device both on cars and vans.
GoSafe G3A also features an optional rechargeable 250 mAh backup battery. When fully charged it ensures about 3-4 hours of device uptime (in normal conditions).
Local and remote management
GPS tracker GoSafe G3A can be fully controlled over GPRS, including configuration of tracking modes and outputs control. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.
LED Indication
G3A has three LEDs
- LED indicating GPS reception
- LED indicating GSM/GPRS reception
- LED indicating Power status
Conexão do servidor
| Servidor da UE | tracker.navixy.com (52.57.1.136) |
| Servidor dos EUA | tracker.us.navixy.com (13.52.37.2) |
| Porta do servidor | 47771 |
| Auto cadastro | Sim |
Informação geral
| Propósito | Veículo |
| Peso | 80 g (2.82 oz.) |
Conectividade
| Nível do sinal | Sim |
| ID do operador | Sim |
Informações de localização
| Nível de sinal GNSS | Sim |
| LBS | Sim |
Caracteristicas
| Controle remoto das saídas | Sim |
| Hodômetro | Sim |
Interfaces
| Entradas digitais | 4 |
| Número de saídas | 3 |
| Sensor analógico | Sim |
| Sensor de pulso | Sim |
| Sensor de frequência | Sim |
