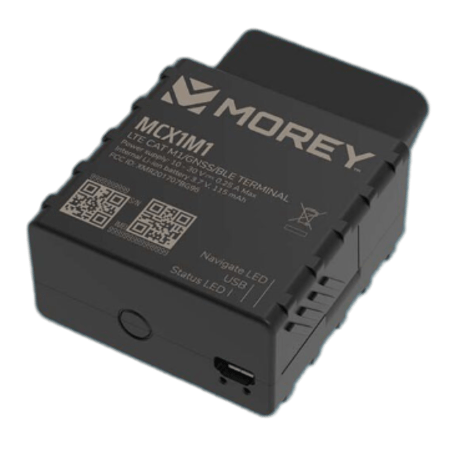

Morey MCX1M1
The Morey MCX1M1 is an easy OBD-II plug and play tracker with GNSS, 4G LTE (CAT M1) and Bluetooth connectivity. It is perfectly suited for light vehicle tracking in applications such as courier delivery service, car rental & leasing, insurance telematics and more where simple integration is a must. The MCX1M1 also has an additional
The Morey MCX1M1 is an easy OBD-II plug and play tracker with GNSS, 4G LTE (CAT M1) and Bluetooth connectivity. It is perfectly suited for light vehicle tracking in applications such as courier delivery service, car rental & leasing, insurance telematics and more where simple integration is a must. The MCX1M1 also has an additional feature—reading OBD-II data from the on-board computer. The device supports firmware and configuration updates via Bluetooth.
Conexão do servidor
| Servidor da UE | tracker.navixy.com (52.57.1.136) |
| Servidor dos EUA | tracker.us.navixy.com (13.52.37.2) |
| Porta do servidor | 47776 |
| Auto cadastro | Sim |
Informação geral
| Propósito | Veículo |
| Peso | 63 g (2.22 oz.) |
| Tamanho | 50.7x49.6x25 mm (2x1.95x0.98 in) |
| À prova d\'água | IP41 |
| Antena interna (GNSS) | Yes |
| Antena interna (Conexão) | Yes |
Conectividade
| Status do roaming | Sim |
| Nível do sinal | Sim |
| ID do operador | Sim |
| Tipo de rede celular | LTE FDD: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B28, LTE TDD: B39 (For CAT M1 Only), EGPRS: 850/900/1800/1900MHz |
| Geração de rede celular | 4G, 3G |
Informações de localização
| Nível de sinal GNSS | Sim |
| LBS | Sim |
| Localização forçada pelo GNSS em preferência ao GPRS | Sim |
| Localização GNSS forçada em preferência ao SMS | Sim |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Beidou | Yes |
Caracteristicas
| Hodômetro | Sim |
| Acelerômetro | Sim |
| Leitura de ID do motorista | Sim |
| Capacidade da bateria | 115 mAh |
Interfaces
| Entradas digitais | 1 |
| Sensor de frequência | Sim |
| Tipo de leitor CAN/OBDII | Internal |
