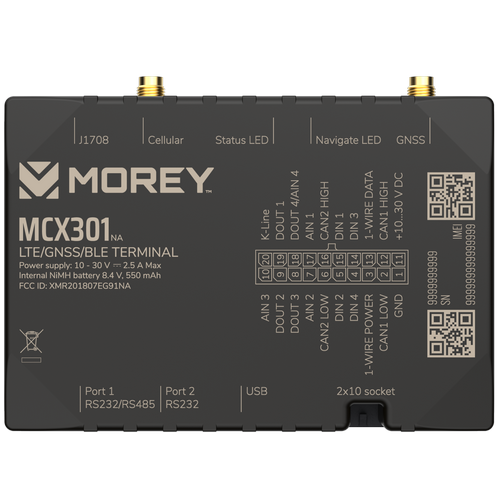

Morey MCX301
Morey MCX301 is a PROFESSIONAL series device with 4G (LTE Cat 1) network coverage including 3G (UMTS), 2G (GSM) fallback compatibility. Device equipped with GNSS/LTE and Bluetooth modules. MCX301 will maximize your fleet efficiency with features like FMS CAN data (J1939), fuel CAN data (J1708), tachograph live data (K-Line), remote tachograph file download, various third party RS232 or RS485 devices support and Dual-SIM. Terminal is suitable for applications like international logistics, refrigerated transport, agriculture, construction & mining, security & emergency services and even more.
Mostrar mais
Location and tracking
- GPS, GLONASS, GALILEO, BEIDOU, QZSS
- Continuous and interval tracking modes
- LBS
Mobile networks
- Bands
- 2G / 3G / 4G LTE
Power supply
- Build-in battery 550 mAh Ni-Mh
- External power supply 10 – 30 V DC
Inputs and outputs
- 4 Digital Inputs
- 4 Digital Outputs
- 4 Analog Inputs
- 1 1-Wire interface
- 2 RS232 interfaces
- 1 RS485 interface
- 2 CAN J1939
- 1 CAN J1708
Other features
- Green/Eco Driving
- Local and remote management
- Over Speeding detection
- Jamming detection
- Excessive Idling detection
- Towing detection
- Crash detection
- Immobilizer
- iButton Read Notification
- DDD files download
Conexão do servidor
| Servidor da UE | tracker.navixy.com (52.57.1.136) |
| Servidor dos EUA | tracker.us.navixy.com (13.52.37.2) |
| Porta do servidor | 47776 |
| Auto cadastro | Sim |
Informação geral
| Propósito | Veículo |
| Peso | 197 g (6.95 oz.) |
Conectividade
| Status do roaming | Sim |
| Nível do sinal | Sim |
| ID do operador | Sim |
Informações de localização
| Nível de sinal GNSS | Sim |
| LBS | Sim |
| Localização forçada pelo GNSS em preferência ao GPRS | Sim |
| Localização GNSS forçada em preferência ao SMS | Sim |
Caracteristicas
| Controle remoto das saídas | Sim |
| Hodômetro | Sim |
| Acelerômetro | Sim |
| Leitura de ID do motorista | Sim |
Interfaces
| Entradas digitais | 5 |
| Número de saídas | 4 |
| Sensor analógico | Sim |
| Sensor de pulso | Sim |
| Sensor de frequência | Sim |
Campos de entrada
Campos de status
Monitoramento de eventos
