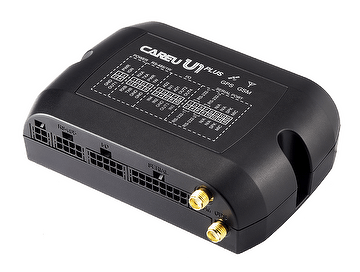

CAREU U1 Plus
CAREU U1 Plus is a cost-effective and easy-to-install GPS tracking device. It features RS232 interface and 1-Wire interface temperature and i-Button driver ID function. It is an ideal solution for everyday fleet tracking management.
Mostrar mais
Packaging content:
- U1 Plus tracking device
- User manual
Features:
- Cost effective and easy installation
- Two-ways voice communication*
- Data communications by UMTS/HSPA/GPRS/EDGE, SMS, FTP, USSD
- Support GPS/ Glonass*/ BDS*/ Galileo* Satellite System
- Built-in 6-axis accelerometer
- Support harsh acceleration/ harsh braking/Impact detection/ harsh cornering/ Flip over detection
- Support 1-Wire® interface temperature function and i-Button driver ID
- RS232 interface for rich accessories supporting, Fuel level sensor, RFID reader, Barcode, and so on.
- Support Garmin FMI 2.0 operation
- Geofence report in circular and polygonal types
- Remote configuration
- Configurable real-time tracking
- Intelligent power management
- GPS Odometer data reading and flexible user-defined reports
- FOTA firmware via FTP
- Power low/lost alarm
- GSM jamming detection
- GPS antenna tamper detect alarm
- Maximum 100,000 data logs
(*) Optional
Applications:
- Fleet tracking
- Vehicle security/rescue/anti-hijack
- Mobile asset tracking
- Fleet management
- Location based service
Specifications:
Communication Specification:
- Frequency 2G/GSM:Quad band, 850/900/1800/1900 MHz 3G/ UMTS/HSPA:850/900/1900/2100 MHz
- Data Protocol:TCP, UDP
GNSS Performance:
- Datum:WGS-84
- Receiver type:72 channels ‧Sensitivity:-160 dBm; 26s
Power Consumption:
- 49mA@12V DC (Operating Mode)
- 10mA@12V DC (Standby Mode)
- 6mA@12V DC (Sleep Mode)
Operating Temperature: -20℃~+70℃ (-4℉~158℉)
Serial Ports: 3 x RS-232 Port (Configurable baud rate), 1xRS-485
Input Ports:
- 1 x ACC/Ignition Input
- 4 x Digital Inputs (2 x Positive trigger & 2 x Negative triggers)
- 2 x Analog Input (12-bit resolution)
- 1 x 1-Wire® Input
Output Ports: 4 x Outputs (Max. sink current 300mA)
Conexão do servidor
Servidor da UE | tracker.navixy.com (52.57.1.136) |
Servidor dos EUA | tracker.us.navixy.com (13.52.37.2) |
Porta do servidor | 46986 |
Auto cadastro | Sim |
Informação geral
Propósito | Veículo |
Peso | 80 g (2.82 oz.) |
Informações de localização
Nível de sinal GNSS | Sim |
Caracteristicas
Controle remoto das saídas | Sim |
Hodômetro | Sim |
Leitura de ID do motorista | Sim |
Interfaces
Entradas digitais | 5 |
Número de saídas | 4 |
Sensor analógico | Sim |
Campos de entrada
Campos de status
Monitoramento de eventos
