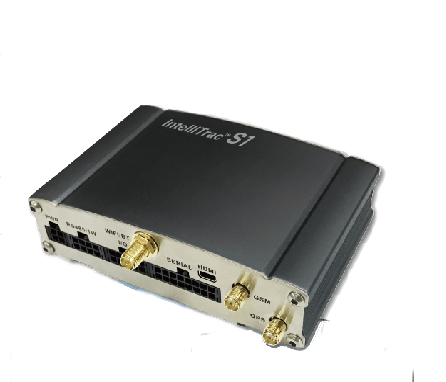

Systems & Technology Intellitrac S1
IntelliTrac S1 is the ultimate next generation telematic device. With built in high performance GPS module, 3G modem, WiFi, and Bluetooth modules, IntelliTrac S1 is versatile in fulfilling fleet management and logistics monitoring requirements for both current and future markets. Powered by Intel Atom x3 quad core processor and Android 6.0 OS, IntelliTrac S1 not only includes the rich features present in an advance type GPS tracker, it also allows custom software developments to further enhance the rapidly evolving IoV applications
Mostrar mais
Location and tracking
- GPS Support
- Continuous and interval tracking modes
Mobile networks
- 850/900/1900/2100 MHz
- 2G / 3G Networks
Power supply
- External power supply (8-40V DC)
- Backup battery:Li-ion, 900mAh
Inputs and outputs
- 1 x ACC/Ignition Input
- 4 x Discrete Inputs
- 2 x Analog Inputs
Other features
- 1-Wire
- Remote management
- i-button
Conexão do servidor
Servidor da UE | tracker.navixy.com (52.57.1.136) |
Servidor dos EUA | tracker.us.navixy.com (13.52.37.2) |
Porta do servidor | 46986 |
Auto cadastro | Sim |
Informação geral
Propósito | Veículo |
Peso | 260 g (9.17 oz.) |
Informações de localização
Nível de sinal GNSS | Sim |
Caracteristicas
Controle remoto das saídas | Sim |
Hodômetro | Sim |
Leitura de ID do motorista | Sim |
Interfaces
Entradas digitais | 4 |
Número de saídas | 3 |
Sensor analógico | Sim |
Campos de entrada
Campos de status
Monitoramento de eventos
