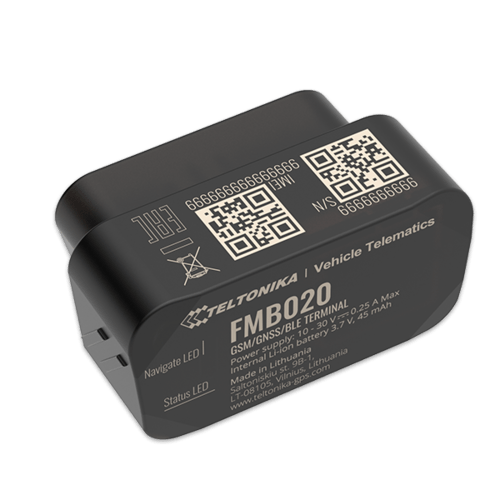

Teltonika FMB020
FMB020 is an ultra-small OBDII plug and track device with GNSS, GSM and Bluetooth connectivity for a true connected car application. It is a perfect tracker for a wide range of use cases – including fleet management of light commercial vehicles, driver log-book, insurance telematics (UBI), car rental & leasing and more.
FMB020 device supports crash detection functionality that allows the user to be notified when a car crash happens. By using the accelerometer data received during the crash, it is possible to visualize the angle and measure the force with which the vehicle was hit. This could prove to be useful in Insurance Telematics solutions. The device supports various Bluetooth Low energy sensors, beacons, hands-free headsets, firmware and configuration updates via Bluetooth
Location and tracking
- GPS, GLONASS, GALILEO, BEIDOU
- Interval and continuous tracking modes
- LBS
Mobile networks
- Quad band 850 / 900 / 1800 / 1900 MHz
- 2G / 3G
Power supply
- Build-in 3.7 V 45 mAh battery
- External power supply 10 – 30 V DC
Other features
- Assisted GPS
- IP41 protection
- Green driving detection
- Car crash detection
Conexão do servidor
| Servidor da UE | tracker.navixy.com (52.57.1.136) |
| Servidor dos EUA | tracker.us.navixy.com (13.52.37.2) |
| Porta do servidor | 47776 |
| Auto cadastro | Sim |
Informação geral
| Propósito | Veículo |
Conectividade
| Status do roaming | Sim |
| Nível do sinal | Sim |
| ID do operador | Sim |
Informações de localização
| Nível de sinal GNSS | Sim |
| LBS | Sim |
| Localização forçada pelo GNSS em preferência ao GPRS | Sim |
| Localização GNSS forçada em preferência ao SMS | Sim |
Caracteristicas
| Hodômetro | Sim |
| Acelerômetro | Sim |
| Leitura de ID do motorista | Sim |
Interfaces
| Entradas digitais | 1 |
| Sensor de pulso | Sim |
| Sensor de frequência | Sim |
