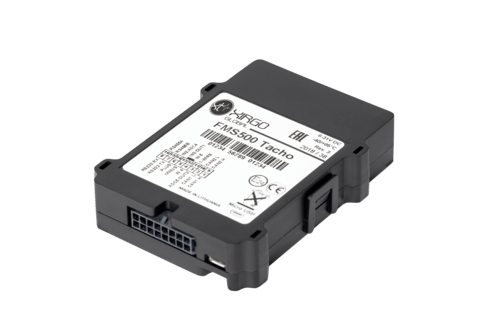

Xirgo Global FMS500 Tacho

Xirgo Global FMS500 Tacho is a new generation fleet management device with a full range of CAN-BUS data, remote tachograph data download and a wide variety of available accessories which make this device a powerful tool for satisfying the needs of the most demanding customer in the fleet management field.

Mostrar mais

Location and tracking

  • GPS/GLONASS support
  • Continuous tracking mode
  • LBS support

Mobile networks

  • 2G/3G Network
  • GSM Quad-Band

Power supply

  • Build-in battery 700mAh (optional)
  • External power supply (8 – 31V)

Inputs and outputs

  • 4 Digital input
  • 3 Analog inputs
  • 2 Outputs

Other features

  • 2 CAN lines operating simultaneously
  • Internal antennas
  • GSM jamming detection
  • Remote tachograph data download

Navixy implementation

Input mapping

  • IN1 – movement sensor
  • IN2, IN3, IN4 – input 2,3,4
  • IN5 – input 1
  • IN7 – input 5
  • IN8 – event External power
  • IN9 – event GSM Damp
  • IN13/IN15 – event Carsh alarm
  • IN16 – event GPS-antenna

Conexão do servidor

Servidor da UEtracker.navixy.com (52.57.1.136)
Servidor dos EUAtracker.us.navixy.com (13.52.37.2)
Porta do servidor47727
Auto cadastroSim

Informação geral

PropósitoVeículo
Tamanho68x91x19 mm (2.68x3.58x0.75 in)
Antena interna (GNSS)Yes
Antena interna (Conexão)Yes

Conectividade

Nível do sinalSim
ID do operadorSim
Tipo de rede celularGSM Quad Band
Geração de rede celular2G

Informações de localização

Nível de sinal GNSSSim
LBSSim
GPSYes
GLONASSYes

Caracteristicas

Controle remoto das saídasSim
HodômetroSim
AcelerômetroSim
Leitura de ID do motoristaSim

Interfaces

Entradas digitais5
Número de saídas2
Sensor analógicoSim
Sensor de frequênciaSim
