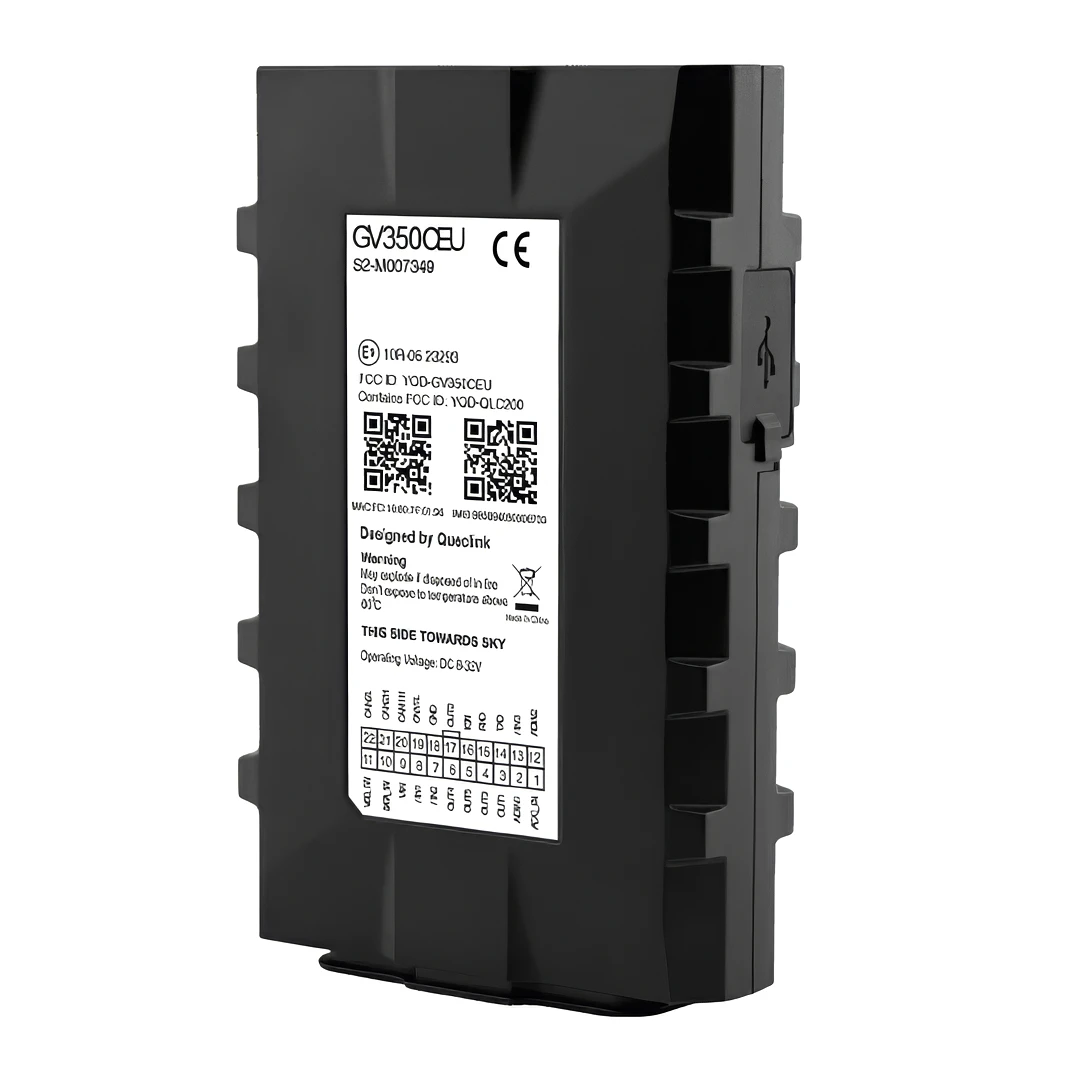

Queclink GV350CEU
The GV350CEU is the new generation advanced telematics solution equipped with LTE Cat 1 and high precision positioning GNSS modules. It can read advanced vehicle data from heavy trucks (CAN and J1708), light commercial vehicles and passenger cars without interfering with vehicle bus wiring or vehicle data ports. With multiple interfaces, the device supports a wide range of pre-integrated accessories either of Queclink or from our selected partners via RS232 serial port and 1-wire interface, providing additional functions such as fuel level monitoring and driver identification. Its built-in BLE allows connectivity to diverse wireless accessories such as BLE beacons and temperature monitoring sensors.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 74 g (2.61 oz.) |
| Size | 94x58.5x21 mm (3.7x2.3x0.83 in) |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Roaming status | Yes |
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | CAT-1: B1/B2/B3/B4/B5/B7/B8/B20/B28, 2G: 850/900/1800/1900 |
| Cellular network generation | LTE CAT-1, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| Forced LBS location update over GPRS | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Beidou | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 250 mAh |
Interfaces
| Discrete inputs | 5 |
| Number of outputs | 5 |
| Analog sensor | Yes |
| 1-Wire interface | Yes |
| CAN/OBDII reader type | Internal |
Input Fields
State Fields
Events monitoring
