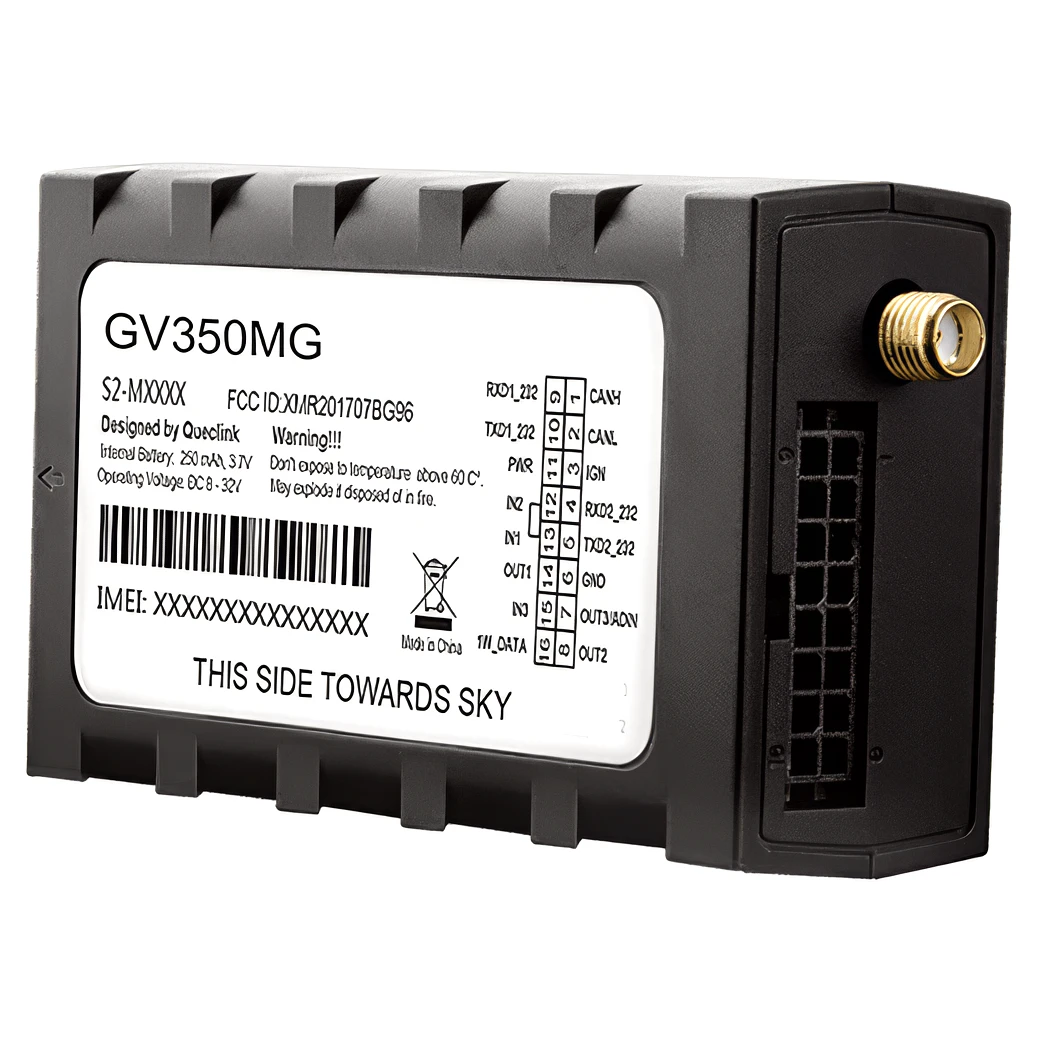

Queclink GV350MG
The GV350MG improves on the GV300 based on customer feedback and adds LTE capability to our successful GV300 2G product. The GV350MG’s CAN interface can be customized to suit specific protocols required by customers. This interface customization has been utilized in tractor integration and other unique situations with specific CAN requirements. Heavy trucks supporting J1939 FMS can be integrated with GV350MG and its multiple accessories such as dual fuel sensors, Garmin FMI products, cameras and Queclink’s I/O extenders.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 75 g (2.65 oz.) |
| Size | 80x48x25 mm (3.15x1.89x0.98 in) |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
| External antenna (GNSS) | Yes |
Connectivity information
| Roaming status | Yes |
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | GSM/GPRS 850/900/1800/1900, B1/B2/B3/B4/B5/B/8/B12/B13/B18/B19/B20/B25/B28 |
| Cellular network generation | Cat M1, Cat NB1, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| Forced LBS location update over GPRS | Yes |
| GPS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 250 mAh |
Interfaces
| Discrete inputs | 4 |
| Number of outputs | 3 |
| Analog sensor | Yes |
| 1-Wire interface | Yes |
| CAN/OBDII reader type | Internal, External |
