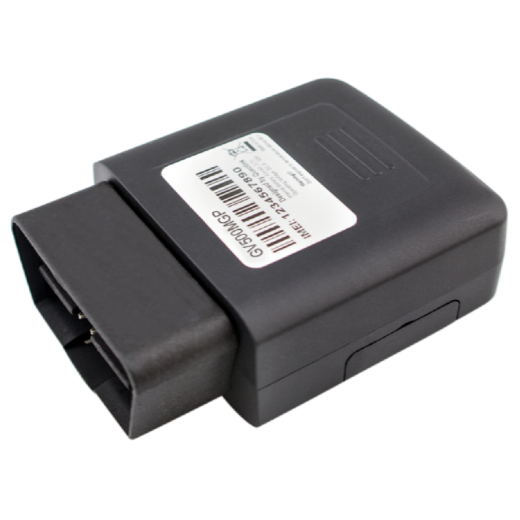

Queclink GV500MGP
The GV500MGP OBDII LTE plug n' play device allows for quick and easy install into small and light-duty vehicles. Gain instant visibility into your fleets' whereabouts and behaviors while on the road. GV500MG helps in the following areas: insurance, car leasing, real-time monitoring, mileage tracking, breakdown assistance, dealer lot management, and new driver vehicle monitoring. If you remove the device from the OBDII port, it will send an alert instantly.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 58 g (2.05 oz.) |
| Size | 49.49x48.5x21.9 mm (1.95x1.91x0.86 in) |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | GSM 850/900/1800/1900, B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28 |
| Cellular network generation | Cat M1, Cat NB1, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| Forced LBS location update over GPRS | Yes |
| GPS | Yes |
Features
| Odometer | Yes |
| Motion sensor | Yes |
| Built-in battery | Yes |
| Battery capacity | 60 mAh |
Interfaces
| Discrete inputs | 1 |
| CAN/OBDII reader type | Internal |
Input Fields
State Fields
Events monitoring
