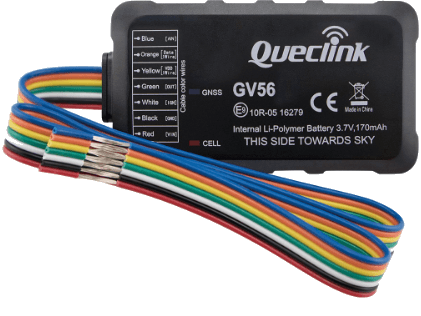

Queclink GV56

The GV56 is a cost-effective GNSS tracker designed for a wide range of basic tracking applications. The model has a 1-wire interface used to support either 1-wire temperature sensor or iButton driver ID. Its built-in Bluetooth can be used for both data and voice transmission.

Show more

Location and tracking

  • GPS, GLONASS
  • Continuous
  • LBS

Mobile networks

  • Quad band 850/900/1800/1900 MHz
  • 2G / 3G

Power supply

  • Build-in battery Li-ion, 170 mAh
  • External power supply 8-32V DC

Inputs and outputs

  • Analog input
  • Digital output
  • Digittal input
  • 1-Wire

Other features

  • Local and remote management
  • Bluetooth 3.0 & BLE 4.0

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47764
Auto registrationYes

General information

PurposeVehicle
Weight55 g (1.94 oz.)

Connectivity information

Network signal levelYes
Network operator IDYes

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes
Forced LBS location update over GPRSYes

Features

Remote outputs controlYes
OdometerYes
Motion sensorYes
Hardware keyYes

Interfaces

Discrete inputs2
Number of outputs1
Analog sensorYes
