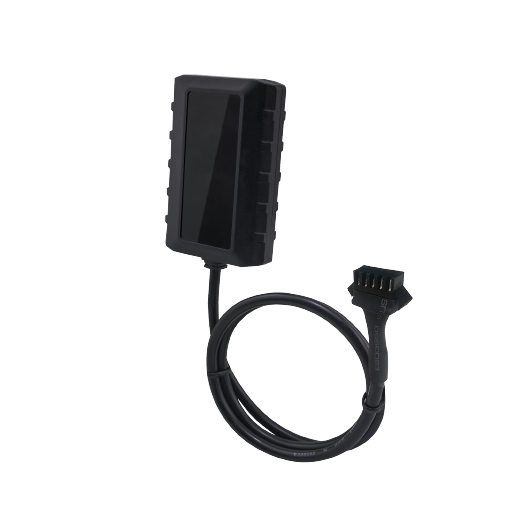

Queclink GV57MG
The GV57MG integrates the latest low-power wide area network standards and covers a broader area, making it more flexible to
deploy. With waterproof design, it ensures the product remains reliable when installed in the harsh environments. It offers basic
digital I/Os that can be used for ignition detection and vehicle control. The product features Queclink’s revolutionary zero power
consumption, allowing owners to leave their cars and motorcycles unattended for long periods of time without having to worry
about a flat battery. The product is ideal for stolen vehicle recovery, motorcycle monitoring and other basic tracking applications.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 74 g (2.61 oz.) |
| Size | 84x50x16.6 mm (3.31x1.97x0.65 in) |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | Cat NB2： B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85, Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B27/B28/B66/B85 |
| Cellular network generation | 4G, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| Forced LBS location update over GPRS | Yes |
| GPS | Yes |
| Galileo | Yes |
| Beidou | Yes |
| Assisted GPS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Motion sensor | Yes |
| Built-in battery | Yes |
| Battery capacity | 190 mAh |
Interfaces
| Discrete inputs | 3 |
| Number of outputs | 1 |
| Analog sensor | Yes |
Input Fields
State Fields
Events monitoring
