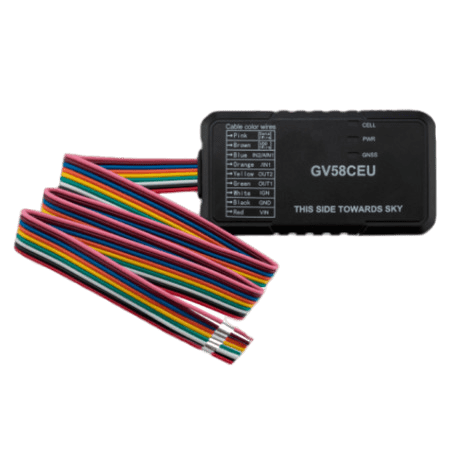

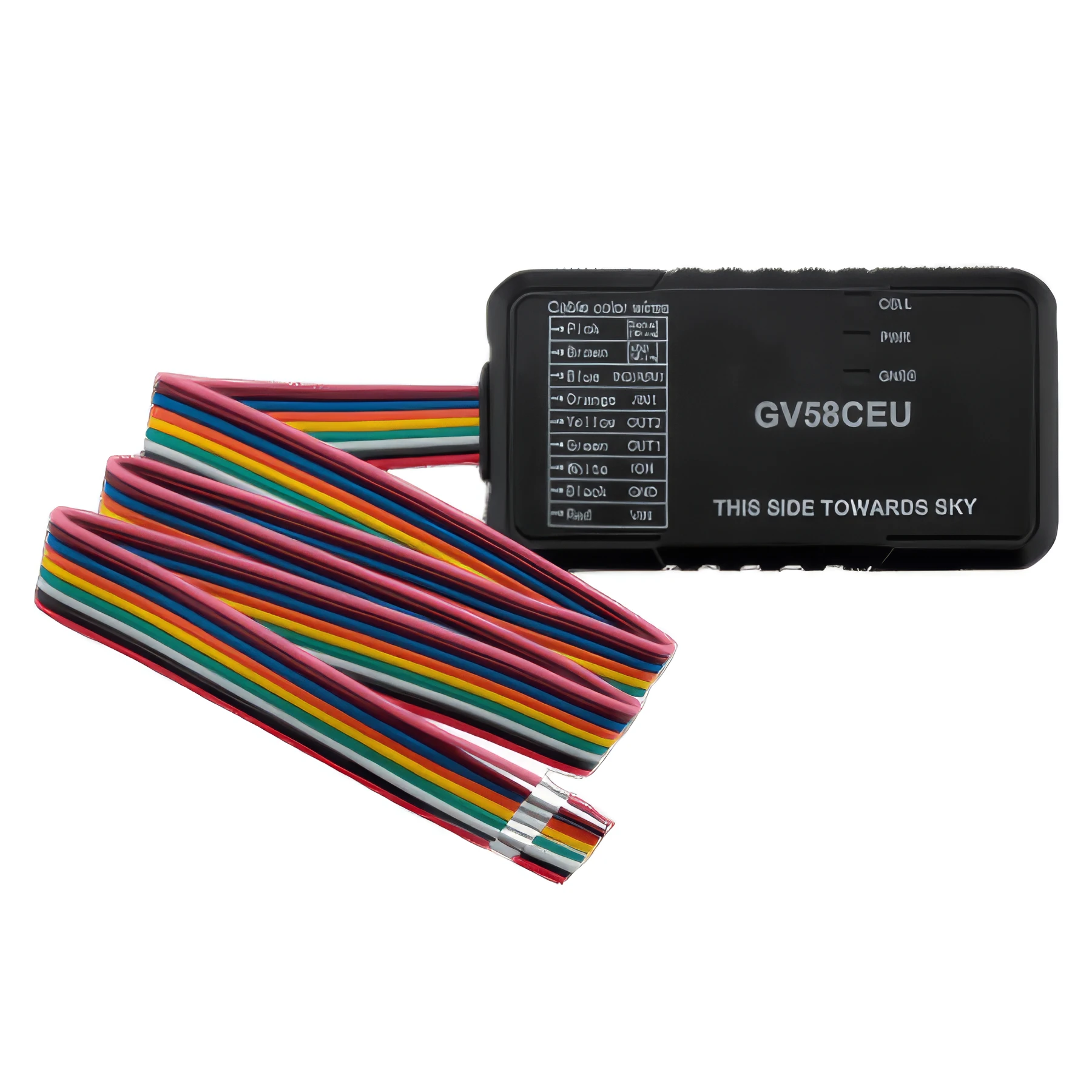

Queclink GV58CEU
The GV58CEU is LTE Cat 1 telematics device for a variety of applications, including general fleet tracking, car rental and leasing, stolen vehicle recovery, logistics, and more. With the GV58CEU, you can optimize your fleet management with its available I/Os, which allows for fuel cut-off, ignition detections, and a single analog sensor. You can also easily identify drivers over 1-wire or BLE. The device also supports a range of BLE-based temperature and humidity, fuel level, and angle tilt monitoring solutions offered either from Queclink or selected partners.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 80 g (2.82 oz.) |
| Size | 86.7x46.4x18.1 mm (3.41x1.83x0.71 in) |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Roaming status | Yes |
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | LTE-FDD: B1/B3/B7/B8/B20/B28, EGPRS: 900/1800 |
| Cellular network generation | LTE CAT-1, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| Forced LBS location update over GPRS | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Beidou | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
| Battery capacity | 190 mAh |
Interfaces
| Discrete inputs | 4 |
| Number of outputs | 2 |
| Analog sensor | Yes |
| 1-Wire interface | Yes |
Input Fields
State Fields
Events monitoring
