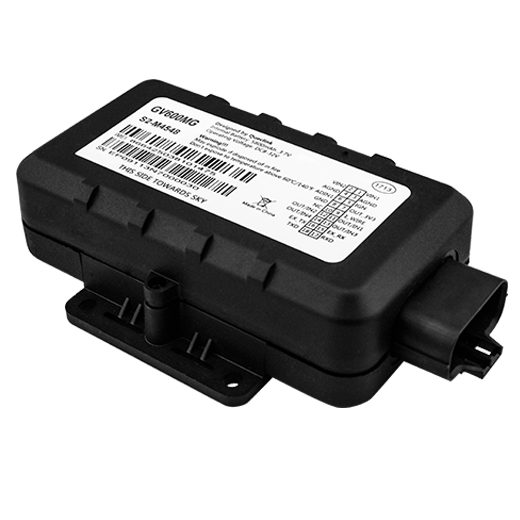

Queclink GV600MG
The GV600MG is an LTE product specifically designed for heavy duty vehicles including trailers, tankers, refrigerated and flatbed trucks. Its ruggedized waterproof design ensures the product remains reliable when installed in the harsh environments commonly found in heavy transportation such as fuel and chemical transportation. The GV600MG can work for up to three months without external power, making it ideal for tracking trailers even when disconnected. Additionally, this product supports dual power sources when mounted on refrigerated trailers and the serial interface is designed for integration with refrigeration unit protocols.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 320 g (11.29 oz.) |
| Size | 138x66x38 mm (5.43x2.6x1.5 in) |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | GSM 850/900/1800/1900, B1/B2/B3/B4/B5/B/8/B12/B13/B18/B19/B20/B25/B28 |
| Cellular network generation | Cat M1, Cat NB1, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| Forced LBS location update over GPRS | Yes |
| GPS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Motion sensor | Yes |
| Built-in battery | Yes |
| Battery capacity | 5800 mAh |
Interfaces
| Discrete inputs | 5 |
| Number of outputs | 4 |
| Analog sensor | Yes |
Input Fields
State Fields
Events monitoring
