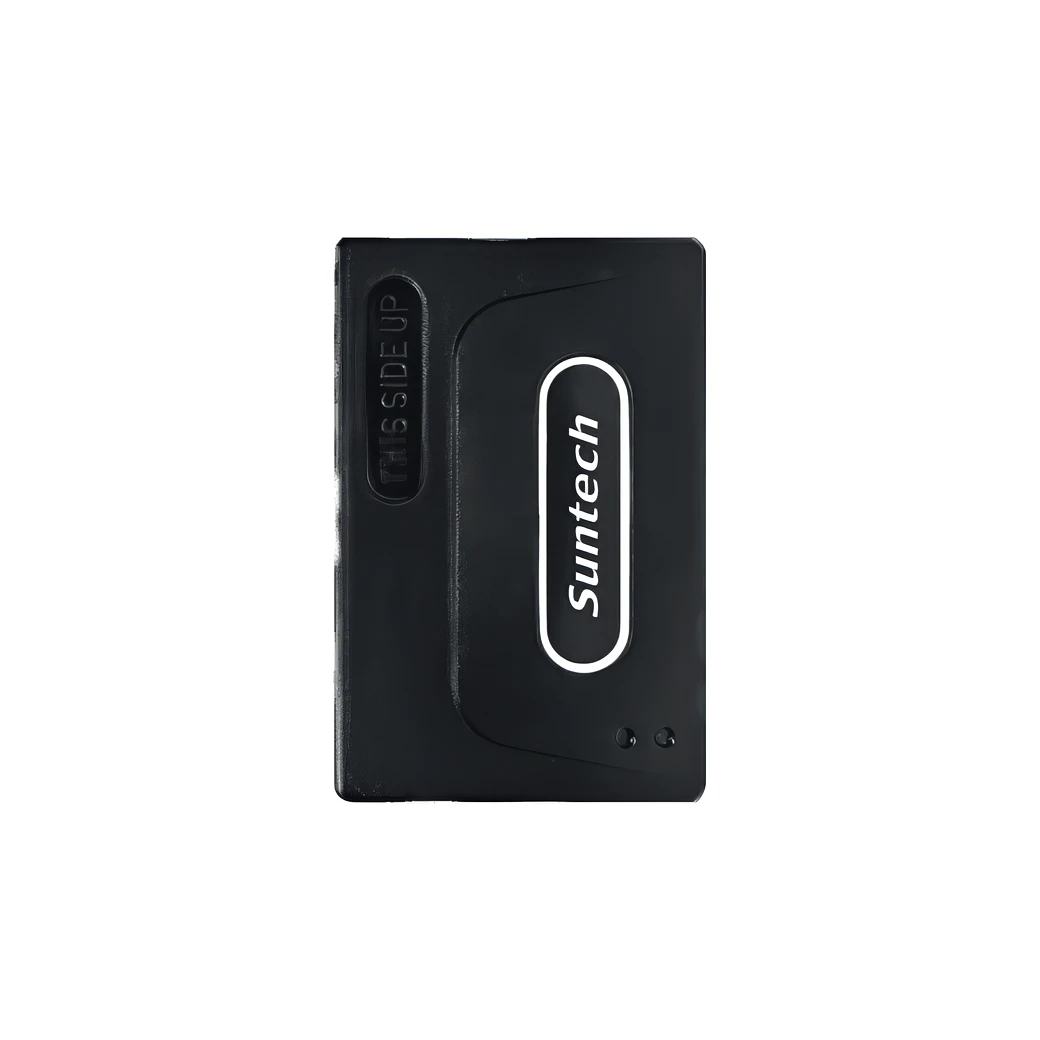

Suntech ST4305
Vehicle tracking telemetry device designed for light vehicle and tractor-trailer applications. It has multiple interfaces including an RS-232 serial port, 1-Wire, ADC and various I/O to support a wide variety of external accessories.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47728 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Size | 90.5x58x26 mm (3.56x2.28x1.02 in) |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | GSM 850/1800/1900, B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 |
| Cellular network generation | 4G, Cat M1, CAT NB-IoT, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| GPS | Yes |
| GLONASS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 450 mAh |
Interfaces
| Discrete inputs | 4 |
| Number of outputs | 3 |
| Analog sensor | Yes |
| 1-Wire interface | Yes |
Input Fields
State Fields
Events monitoring
