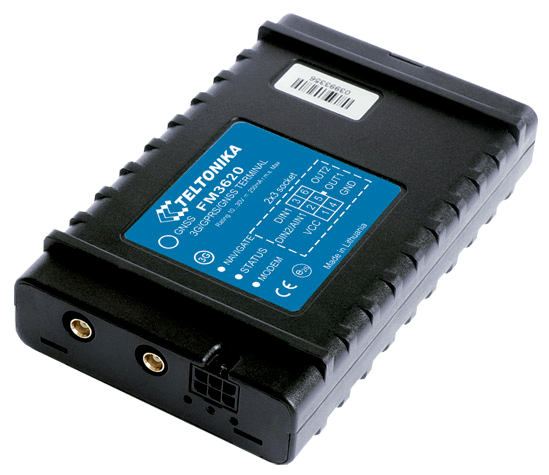

Teltonika FM3620 C1
FM3620 is a terminal with GPS/GLONASS and GSM/3G connectivity with backup battery, which is able to collect device coordinates and other useful data and transfer them via the GSM/3G network.
Show more
This device is perfectly suitable for applications where location acquirement of remote objects is needed. It is important to mention that FM3620 has additional inputs and outputs, which let you control and monitor other devices on remote objects. FM3620 also has a USB port for device status log output and configuration.
Location and tracking
- GPS/GLONASS support
- Continuous tracking mode
- External GNSS antenna for higher sensitivity
Mobile networks
- UMTS/HSPA+ bands: 850/900/1700/1900/2100 MHZ
- 3G support
- External GSM antenna for higher sensitivity
Power supply
- High capacity Internal backup battery
Inputs and outputs
- 1 digital input
- 1 universal digital/analog input
- 2 digital outputs
Local and remote management
- The device can be managed remotely over SMS/GPRS
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47776 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
Connectivity information
| Roaming status | Yes |
| Network signal level | Yes |
| Network operator ID | Yes |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
Interfaces
| Discrete inputs | 3 |
| Number of outputs | 2 |
| Analog sensor | Yes |
Input Fields
State Fields
Events monitoring
