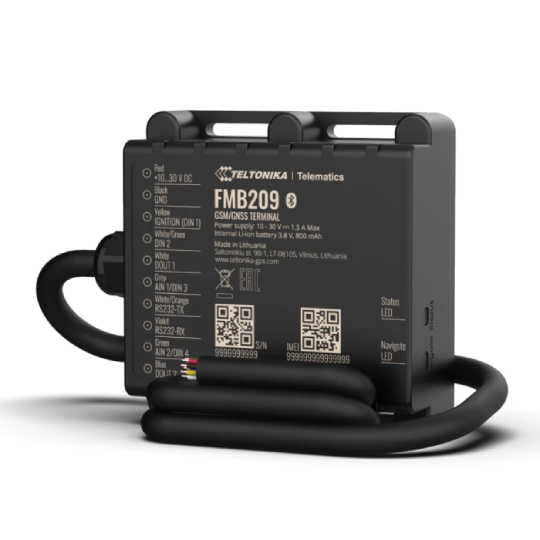

Teltonika FMB209
Teltonika FMB209 is a water-resistant 2G fleet GPS tracker certified for Europe market. Device has large-capacity 800 mAh li-ion battery and various interfaces such as 2 discrete inputs, 2 analog inputs and 2 digital outputs to control external systems such as vehicle engine and others. Teltonika FMB209 has RS232 port that can be used for digital fuel level and temperature sensors. This model has built-in accelerometer for harsh driving and car crash alerts. With the help of BLE support this device can also work with Bluetooth sensors and OBDII dongles.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47776 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 205 g (7.23 oz.) |
| Size | 72.5x73x27.3 mm (2.85x2.87x1.07 in) |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Roaming status | Yes |
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | EGPRS: 850/900/1800/1900MHz |
| Cellular network generation | 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Beidou | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 800 mAh |
Interfaces
| Discrete inputs | 5 |
| Number of outputs | 2 |
| Analog sensor | Yes |
| Impulse counter | Yes |
| Frequency sensor | Yes |
| CAN/OBDII reader type | External |
Input Fields
State Fields
Events monitoring
