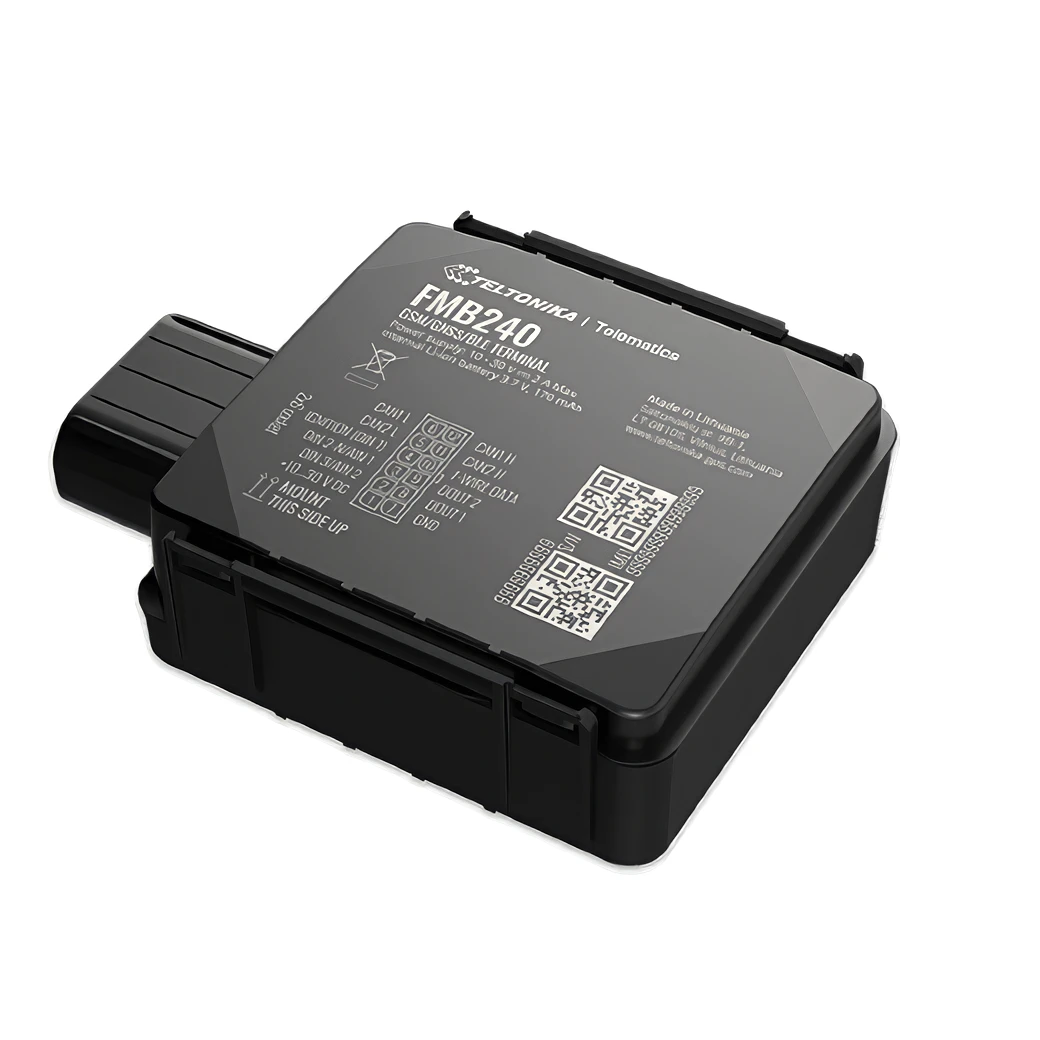

FMB240 is a water and dust resistant GSM/GNSS/Bluetooth tracker with integrated CAN data processor. It is compact 2 in 1 solution: GPS tracker and CAN adapter inside! Device allows to read CAN data from a wide range of various vehicles, including light & electric vehicles, trucks, buses and special machinery. Two options available to fulfill
FMB240 is a water and dust resistant GSM/GNSS/Bluetooth tracker with integrated CAN data processor. It is compact 2 in 1 solution: GPS tracker and CAN adapter inside! Device allows to read CAN data from a wide range of various vehicles, including light & electric vehicles, trucks, buses and special machinery. Two options available to fulfill any business demands:
LV-CAN200 option – default software version with LV-CAN200 parameters, including fuel level, consumption, odometer, CAN speed, pedal position, Supported vehicle types: light vehicles, trucks, buses.
ALL-CAN300 option* – advanced software version allows to read more parameters than default version. Available additional parameters include AdBlue level, engine lifetime, airbag. Supported vehicle types: agriculture, construction, forest, utility & special machineries, light vehicles, trucks, buses + electric vehicles.
FMB240 is developed on the existing Teltonika platform, therefore it keeps all of the functionalities from FMB140 with an additional IP67 resistance to dust and water.
This tracker is dust tight and protected against the effects of a temporary immersion in water. It can be mounted inside and outside of a vehicle without worries that high pressured water, mud or dusty environment will impact its operation or performance quality. This is particularly relevant for the industries where harsh conditions exist, such as agriculture, construction and mining, and more.
FMB240 supports Bluetooth 4.0 LE protocol, which lets you connect various external devices and Bluetooth low energy sensors. New device is a major improvement for telematics with easier installation and flexibility to choose proper set of features without a change of hardware.
Server connection
EU platform | tracker.navixy.com (52.57.1.136) |
US platform | tracker.us.navixy.com (13.52.37.2) |
Server port | 47776 |
Auto registration | Yes |
General information
Purpose | Vehicle |
Connectivity information
Roaming status | Yes |
Network signal level | Yes |
Network operator ID | Yes |
Location information
GNSS signal level | Yes |
LBS | Yes |
Forced GNSS location update over GPRS | Yes |
Forced GNSS location update over SMS | Yes |
Features
Remote outputs control | Yes |
Odometer | Yes |
Motion sensor | Yes |
Hardware key | Yes |
Navixy extra controls
Harsh driving parameters Ignition source Tow detection Unauthorized movement |
Interfaces
Discrete inputs | 4 |
Number of outputs | 2 |
Analog sensor | Yes |
Impulse counter | Yes |
Frequency sensor | Yes |
Input Fields
AVL IO: #1-100000 Acceleration by X axis Acceleration by Y axis Acceleration by Z axis Analog sensor: #1-2 BLE: Battery level: #1-4 BLE: Battery voltage: #1-4 BLE: Humidity sensor: #1-4 BLE: LLS frequency: #1-4 BLE: LLS level: #1-4 BLE: LLS temperature: #1-4 BLE: Luminosity: #1-4 BLE: temperature sensor: #1-4 Battery current Battery voltage Board voltage CAN: Axle load: #1-5 CAN: Battery level CAN: Battery temperature CAN: Battery voltage CAN: Engine hours CAN: Engine load CAN: Engine oil level CAN: Engine temp. CAN: Fuel (litres) CAN: Fuel consumption CAN: Fuel level: #1 CAN: Instant fuel rate CAN: Level of AdBlue fluid CAN: Mileage CAN: RPM CAN: Relative engine hours CAN: Relative fuel consumption CAN: Relative mileage CAN: Speed CAN: Throttle CAN: Total fuel used External temperature: #1-4 Impulse counter: #1-2 Mileage OBD: Absolute load value OBD: Barometric pressure OBD: Control module voltage OBD: Coolant temperature OBD: Engine load OBD: Fuel consumption OBD: Fuel OBD: Intake air temp. OBD: Odometer OBD: Oil temperature OBD: RPM OBD: Real Fuel (litres) OBD: Run time since engine start OBD: Speed OBD: Throttle OBD: Time run with MIL on Pitch: #1-4 Roll: #1-4 TACHO: Mileage TACHO: Speed |
State Fields
CAN: ABS state CAN: Additional front fog lights CAN: Additional rear lights CAN: Air conditioning CAN: Airbag CAN: Automatic retarder CAN: Car is on handbrake CAN: Central differential (4HI) locked CAN: Central differential with reductor (4LO) locked CAN: Clutch state CAN: Coolant liquid temperature/level CAN: Cruise Control Enable Switch CAN: Dipped headlights CAN: Door CAN: Driver seat belt CAN: EPS state CAN: Electronic Power Control CAN: Engine state CAN: Footbrake state CAN: Front differential locked CAN: Front fog lights CAN: Front left door CAN: Front passenger presence CAN: Front right door CAN: Full beam headlights CAN: Glow plug indicator CAN: Hood CAN: Ignition state CAN: Light signal CAN: Lights failure CAN: Low fuel CAN: Low tire pressure CAN: Manual retarder CAN: Oil pressure/level CAN: Parking lights CAN: Passenger seat belt CAN: Ready to drive CAN: Rear central seat belt state CAN: Rear differential locked CAN: Rear fog lights CAN: Rear left door CAN: Rear left seat belt state CAN: Rear right door CAN: Rear right seat belt state CAN: Roof CAN: Trailer axle lift active: #1-2 CAN: Trunk CAN: Warning CAN: Wear of brake pads CAN: Webasto Event code Hardware key Magnetic bluetooth sensor: #1-4 OBD: DTC OBD: Distance with MIL on OBD: Errors OBD: MIL status (check engine) OBD: Mileage after DTC reset OBD: VIN |
Events monitoring
Car crash Check Engine (MIL) Deviation from the route Distance between objects Driver change Engine excessive idling Engine excessive idling Entrance or exit from geofence Excessive driving Excessive parking External power cut Fuel level change GPS jamming GSM jamming Harsh driving Inputs triggering Location report on demand Low battery Outputs triggering Parameter in range Parking state detection Pressing SOS button Speeding (hardware related) Speeding (platform related) State field value Task status change Tracker switched OFF or lost connection Trespassing auto-created geofence Unauthorized movement |
