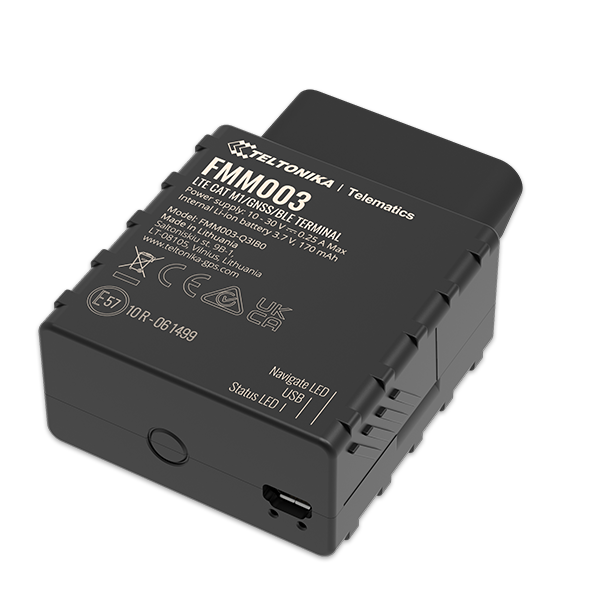

Teltonika FMM003
FMM003 is an advanced plug and play LTE CAT-M1 device dedicated for next generation of OBD applications. The main feature of FMM003 is its possibility to read OEM parameters (PIDs) via OBD port. With this device, you will be able to read Real Odometer and Real Fuel Level data. What’s more, our device comes with the supported vehicles and data list, so no need to guess anymore – now you know what data you can read from a specific vehicle. It is a perfect tracker for a wide range of use cases – including fleet management of light commercial vehicles, driver log-book, insurance telematics (UBI), car rental & leasing and more.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47776 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 63 g (2.22 oz.) |
| Size | 50.7x49.6x25 mm (2x1.95x0.98 in) |
| Waterproof class | IP41 |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Roaming status | Yes |
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | CAT NB1, EGPRS, CAT M1 |
| Cellular network generation | 4G, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Beidou | Yes |
| Assisted GPS | Yes |
Features
| Odometer | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 170 mAh |
Interfaces
| Discrete inputs | 1 |
| Frequency sensor | Yes |
| CAN/OBDII reader type | Yes |
Input Fields
State Fields
Events monitoring
