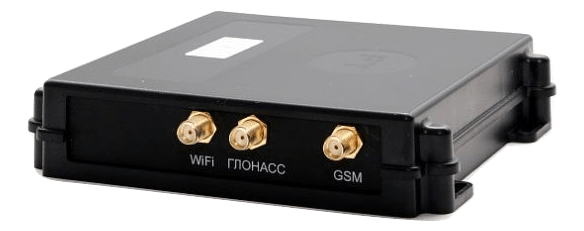

FORT-111 WiFi
FORT-111 WiFi is developed based on FORT-111 platform and designed for use in the areas without GSM coverage or limited GSM coverage (forests, quarry, air field vehicles, e.t.c.).
Show more
The WiFi module allows for encrypted data transmission over WiFi networks without the need to use GSM/GPRS.
Location and tracking
- GPS and GLONASS support
- Continuous and interval tracking modes
- LBS support
Mobile networks
- Bands: GSM 900/1800 Mhz
- No 3G support
Power supply
- 1800 mAh built-in battery
- Power supply: 8-40 V
Inputs and outputs
- 4 general-purpose inputs with impulse counting
- 1 ignition detection input
- 1 analog input with voltage range 0-15V
- 1 analog input with voltage range 0-30V
- 2 general-purpose outputs
- RS-485 interface
- 1-Wire interface
- CAN support
Other features
- WiFi support with traffic encryption
- Quality tracking without “corner cuts”
- Black box with 150 000 records
- Voice GSM connection
- Up to 8 fuel sensors
- RFID driver identification
- Up to 4 digital temperature sensors
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47730 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 400 g (14.11 oz.) |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Hardware key | Yes |
Interfaces
| Discrete inputs | 5 |
| Number of outputs | 2 |
| Analog sensor | Yes |
